KATA logo PT Kaitai Valve IndonesiaAuthorized Sales Entity · Kata Valve (Group) Co., Ltd.

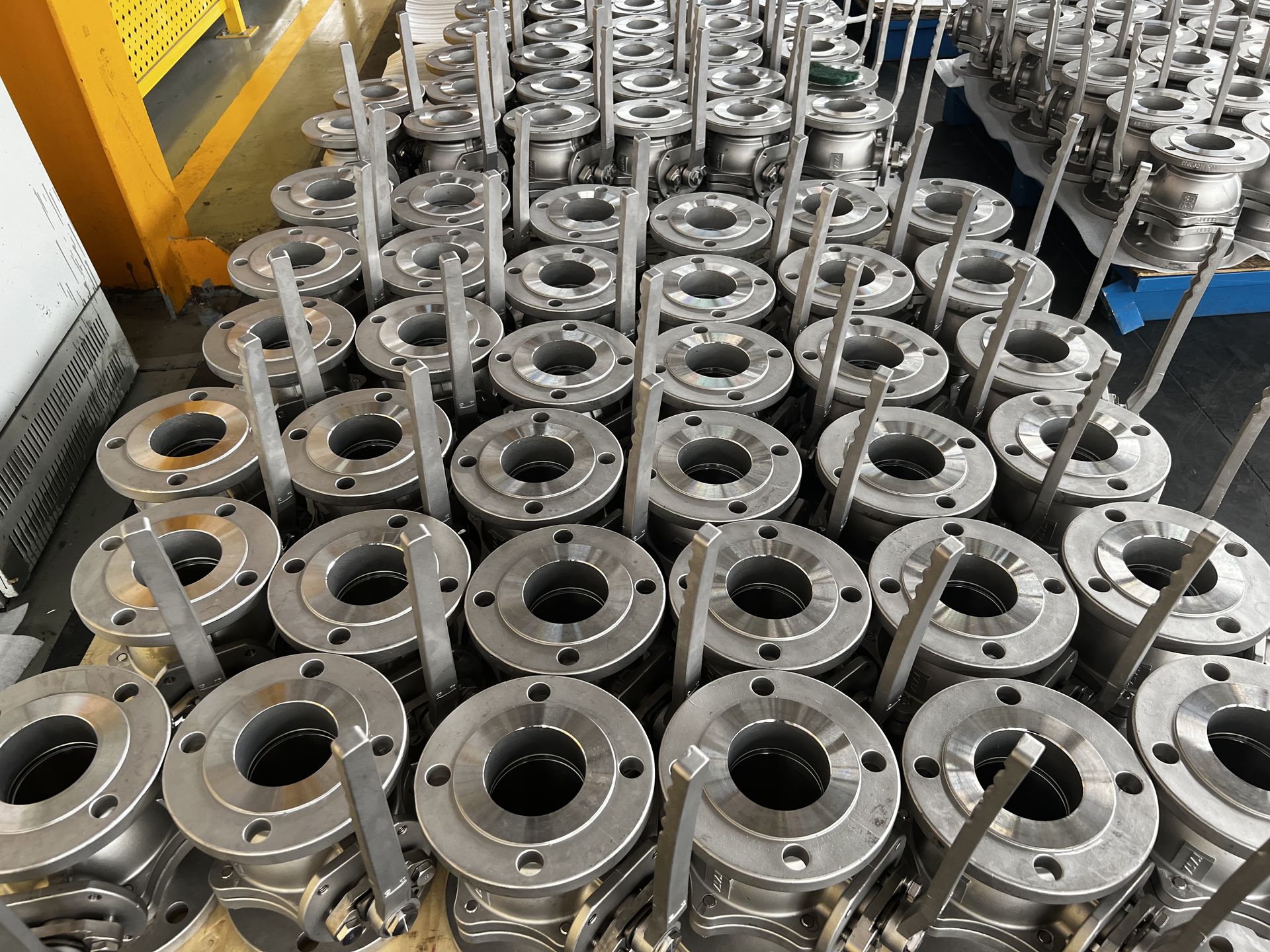

KATA industrial valves in the Shanghai production facility
KATA Industrial Valves · Since 1998

Industrial valves, backed by the full weight of the factory.

PT Kaitai Valve Indonesia (KVI) is the official Indonesian entity of Kata Valve (Group) Co., Ltd. — the Shanghai manufacturer behind the KATA brand. Factory-direct pricing, a standard 6–8 week production lead time, and a full manufacturer warranty on every valve.

Explore the Product Range Talk to Our Team
Range 1/2″–180″ Pressure Class 150–4500 Cryogenic −196 °C · DNV Lead time 6–8 weeks Locations Jakarta · Shanghai · Wenzhou
01 · About

The official local arm of KATA in Indonesia.

Established in 2026 as a fully Indonesian legal entity, KVI is the sales entity and authorized local representation of Kata Valve (Group) Co., Ltd. (KVG) — the Shanghai-based industrial valve manufacturer behind the KATA brand, in operation since 1998.

We serve Indonesia's oil & gas, power, petrochemical, and general industrial sectors with an end-to-end sales approach: technical qualification, quotation, production coordination with the manufacturer, and after-sales support.

As the official local entity, KVI is the direct bridge between customers in Indonesia and the factory — pricing certainty, production schedules, technical support, and a full factory warranty on every KATA product.

PricingFactory-direct certainty, no parallel-distributor markups.
Lead timeStandard 6–8 weeks production; priority slots for committed orders.
WarrantyFull manufacturer warranty and after-sales support with the principal.
SupportLocal Jakarta team — responsive, in Bahasa Indonesia & English.

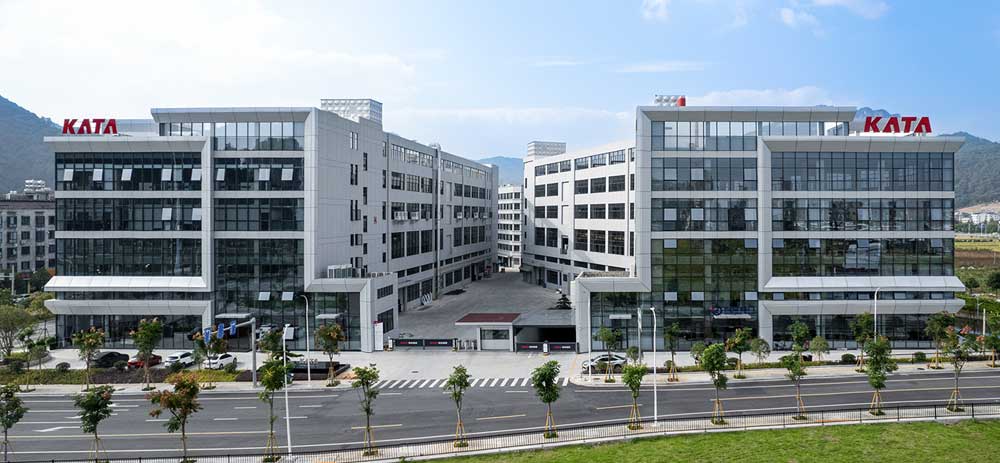

Kata Valve (Group) Co., Ltd. Since 1998
Shanghai
Kata Valve (Group) Co., Ltd.
02 · The Principal

Kata Valve (Group) Co., Ltd. — the factory behind the brand.

Founded in Shanghai in 1998, KVG brings more than 30 years of valve research, development, intelligent manufacturing, and global sales. Fully vertically integrated — owning its own foundry and accessory factory — quality is controlled from raw material to finished product.

1998Founded in Shanghai, China
RMB 151MRegistered capital
5Manufacturing plants
300+Employees
200+Patents & honors
100,000+Units annual capacity
Shanghai HQ>35,000 m² plant in Baoshan City Industrial Zone
Wenzhou Base50,000 m² intelligent manufacturing base with robotic-arm lines — operational since September 2024
Capacity15,000 units/month (small & medium caliber) · 1,200 units/month (large caliber)
IntegrationFull-process self-manufacturing: own foundry + accessory factory; R&D cooperation with Shanghai University of Technology
StatusShanghai high-tech enterprise · Member of the Association of China General Machinery
03 · Products

Six valve families. One quality standard.

The KATA range covers every major industrial valve category — for oil & gas, LNG & cryogenic, petrochemical, power generation, marine & offshore, mining, pulp & paper, and water & wastewater applications.

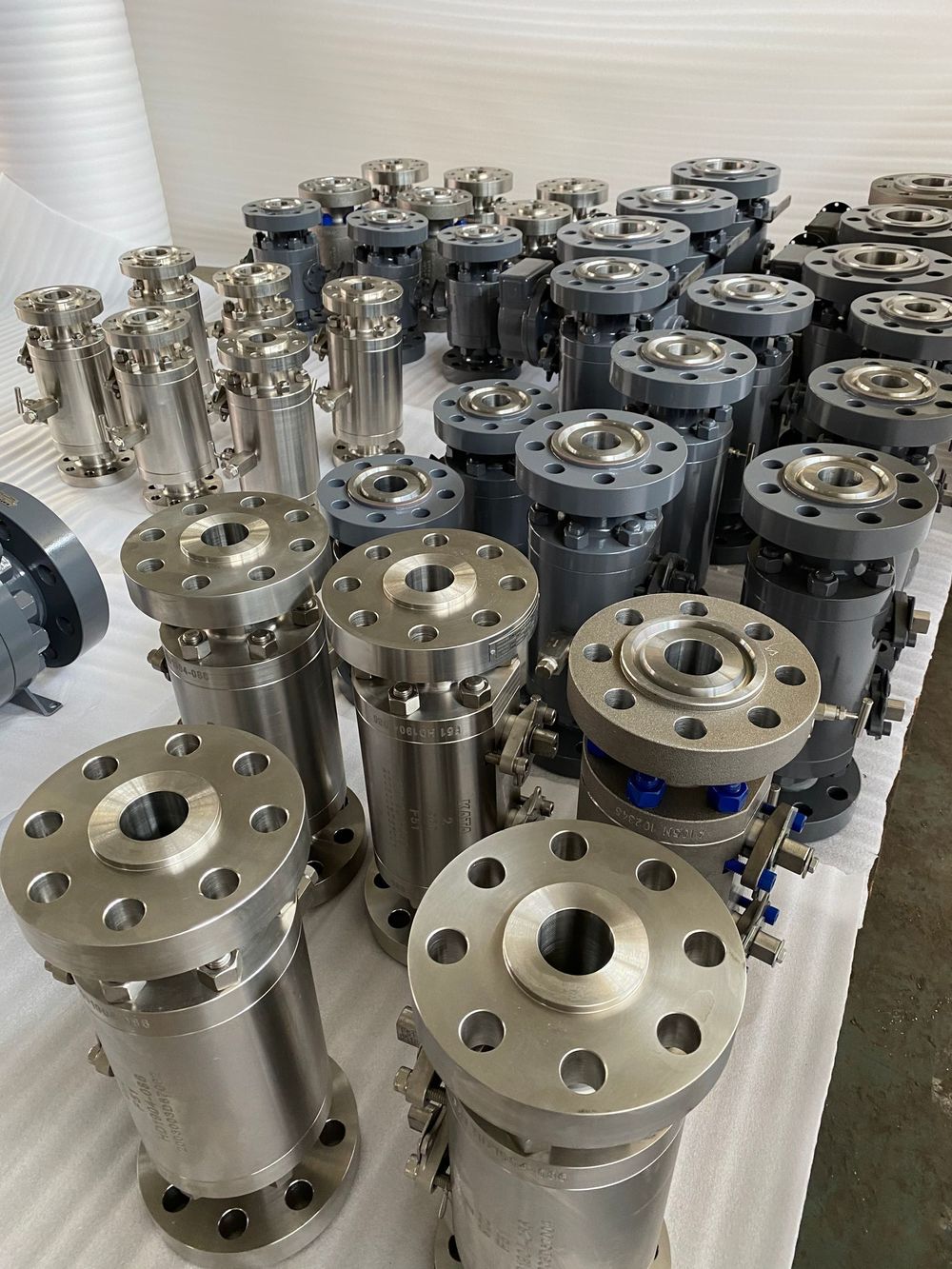

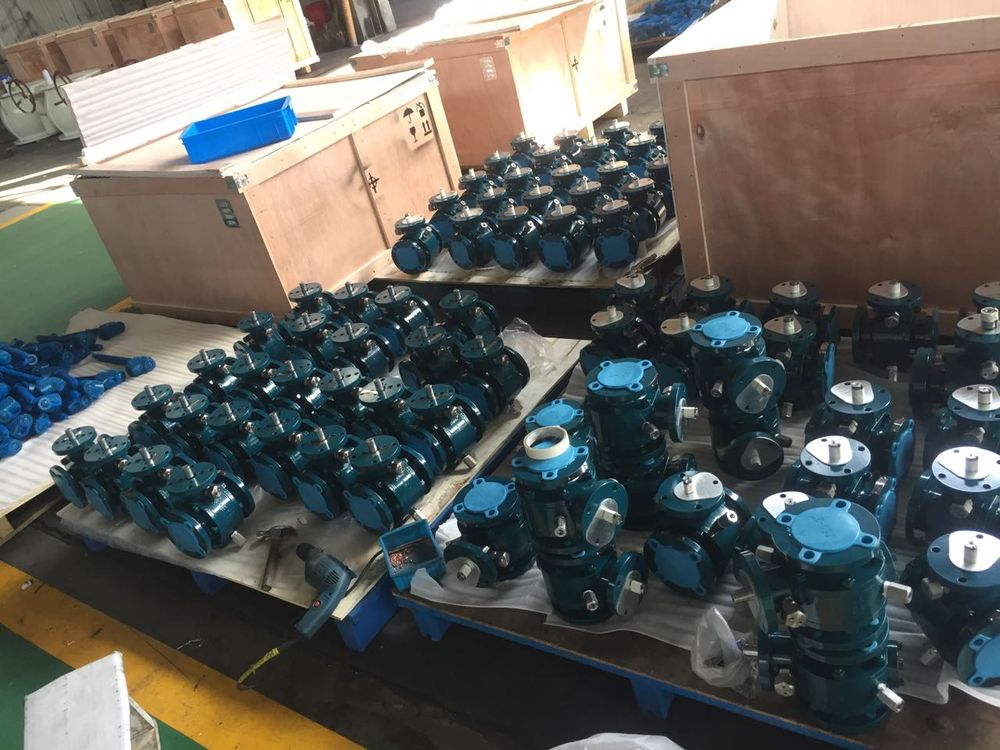

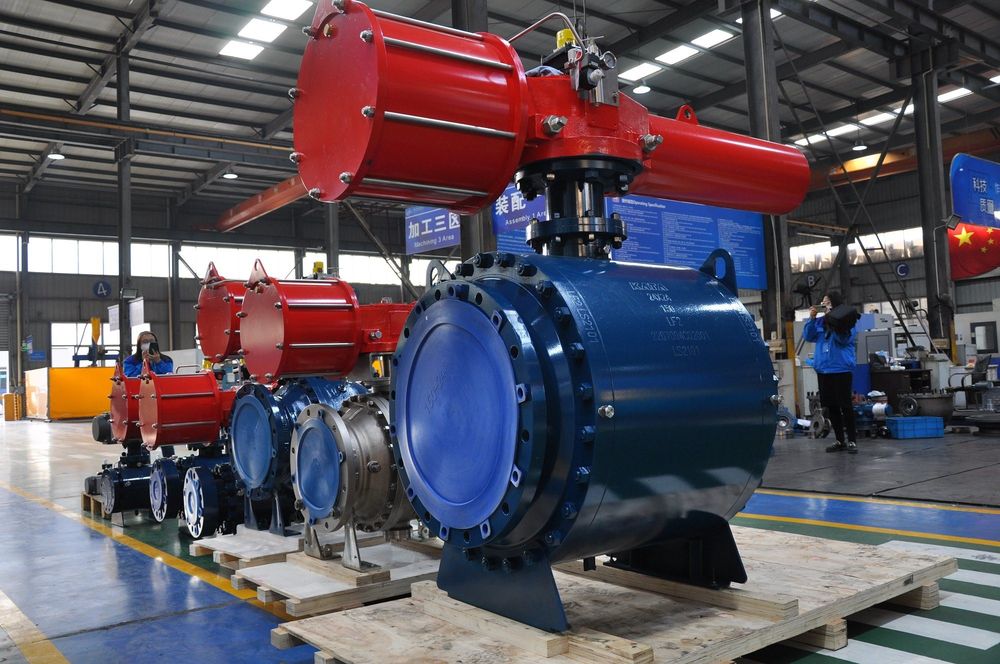

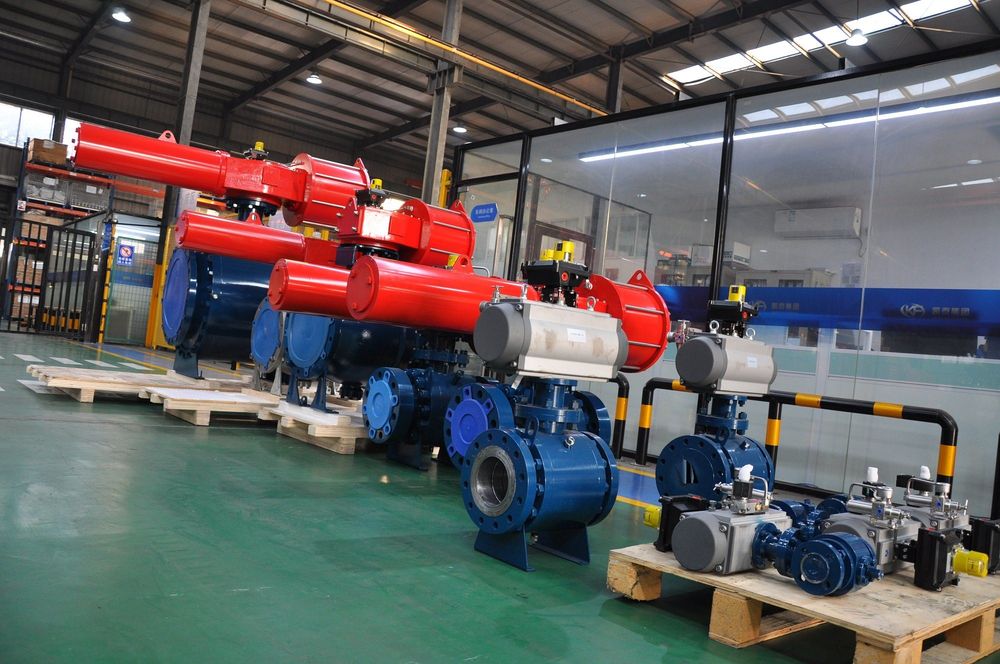

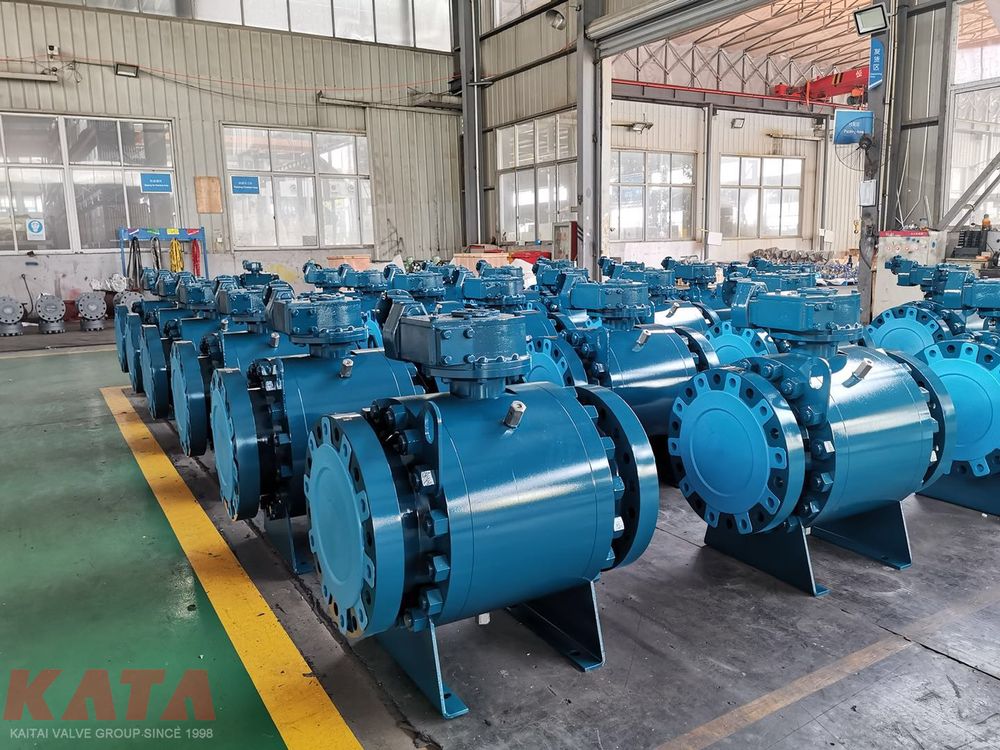

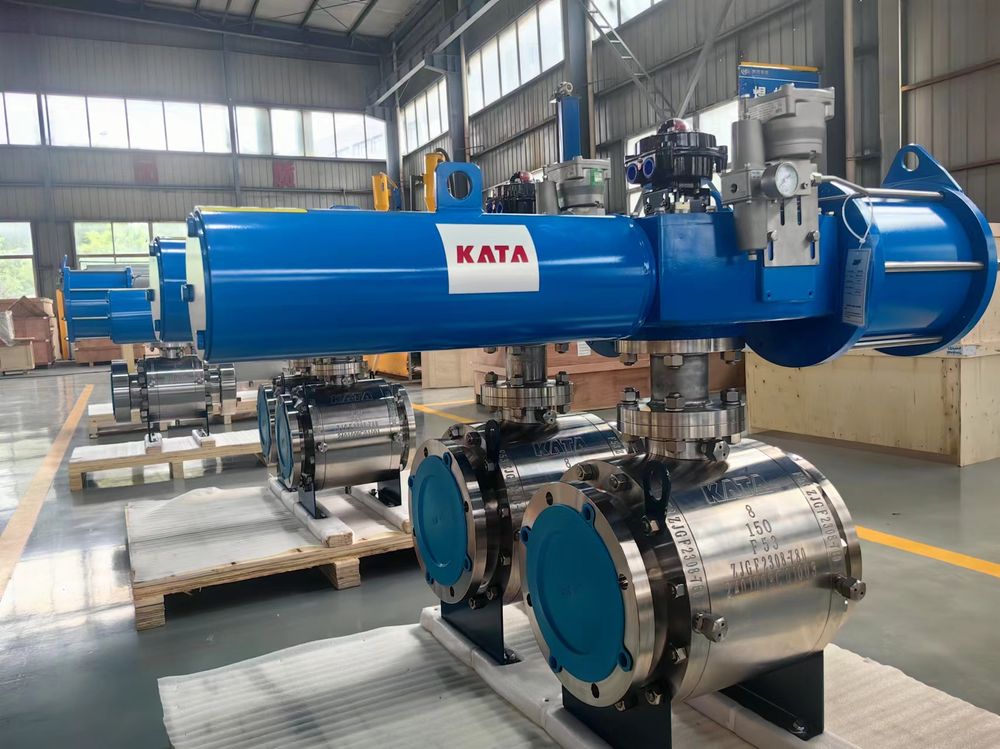

KATA ball valve KATA ball valve KATA ball valve KATA ball valve KATA ball valve KATA ball valve
01

Ball Valve

Floating · Trunnion · Top Entry · Fully Welded

Size1/2″–56″Class150–2500
Product Details
ApplicationsIsolation (on/off) duty across oil & gas, petrochemical, water and general industry — fire-safe and anti-static for hydrocarbon service
DesignsFloating 1/2″–12″ · Trunnion 2″–56″ · Top Entry 2″–24″ · Fully Welded 2″–48″ — all Class 150–2500
StandardsAPI 6D · API 608 · ASME B16.34 · BS 5351
FeaturesFire-safe per API 607 · anti-static · blow-out-proof stem · ISO 5211 mounting · DBB / DIB options · metal hard-seat option
MaterialsWCB · LCB · CF8/CF8M · CF3/CF3M · A105 · LF2 · F304/F316 · duplex & alloy options
ActuationManual · worm gear · electric · pneumatic

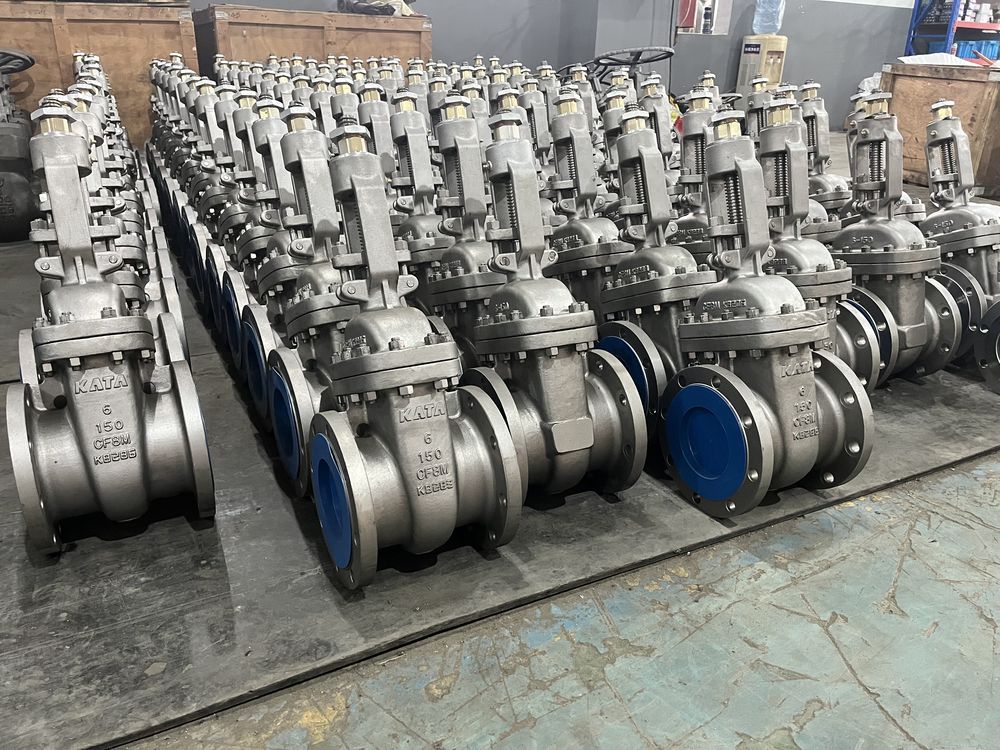

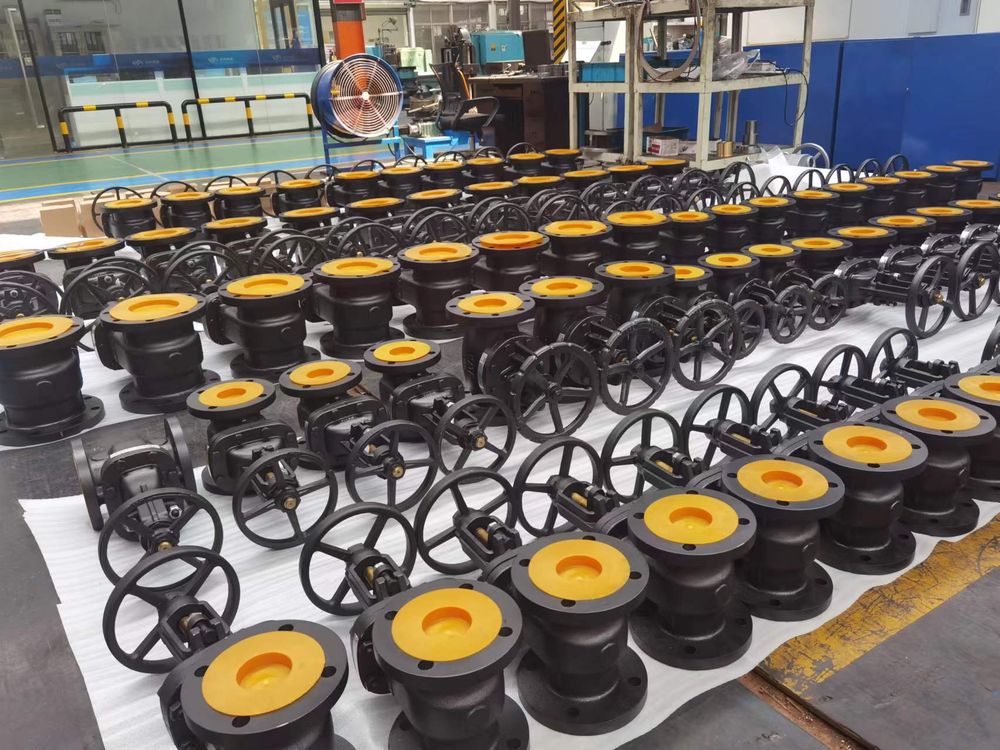

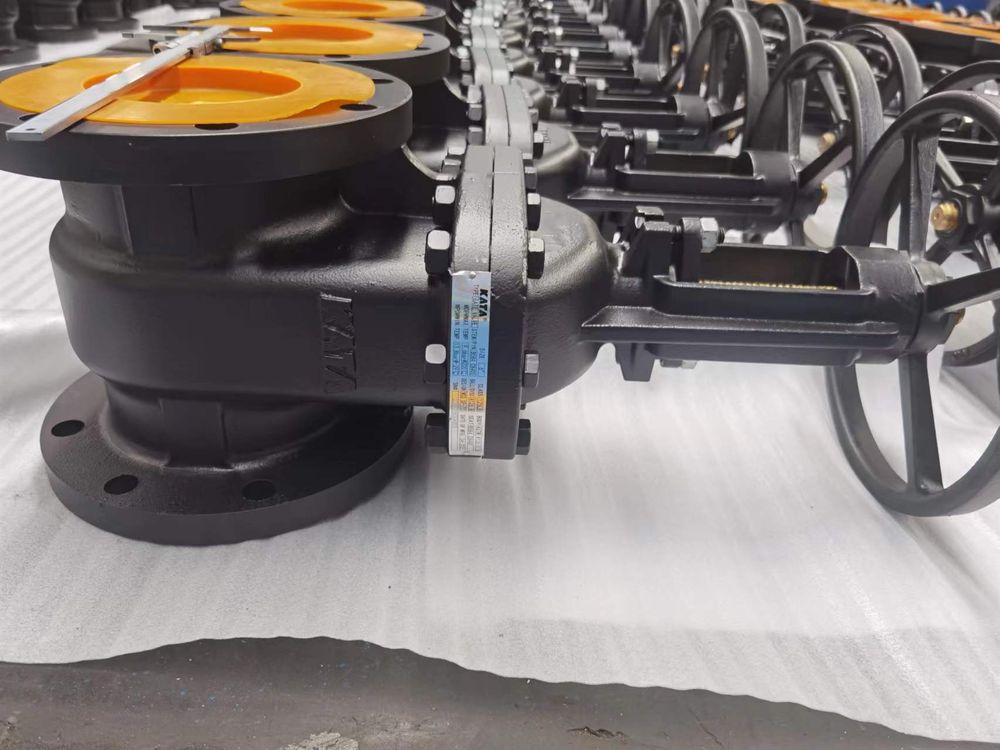

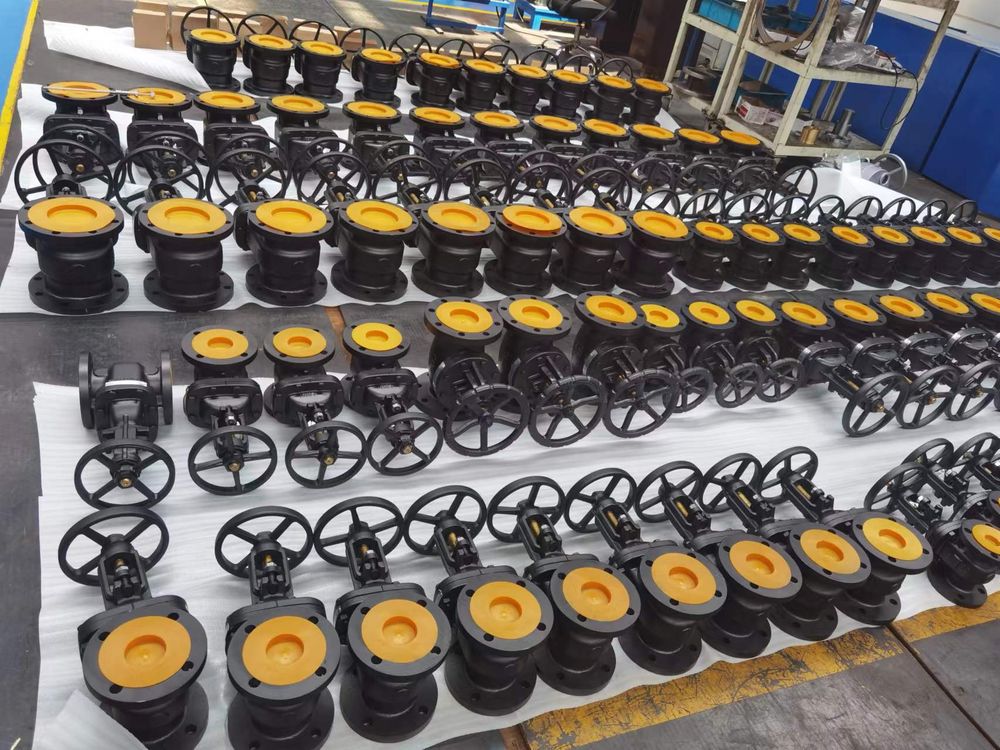

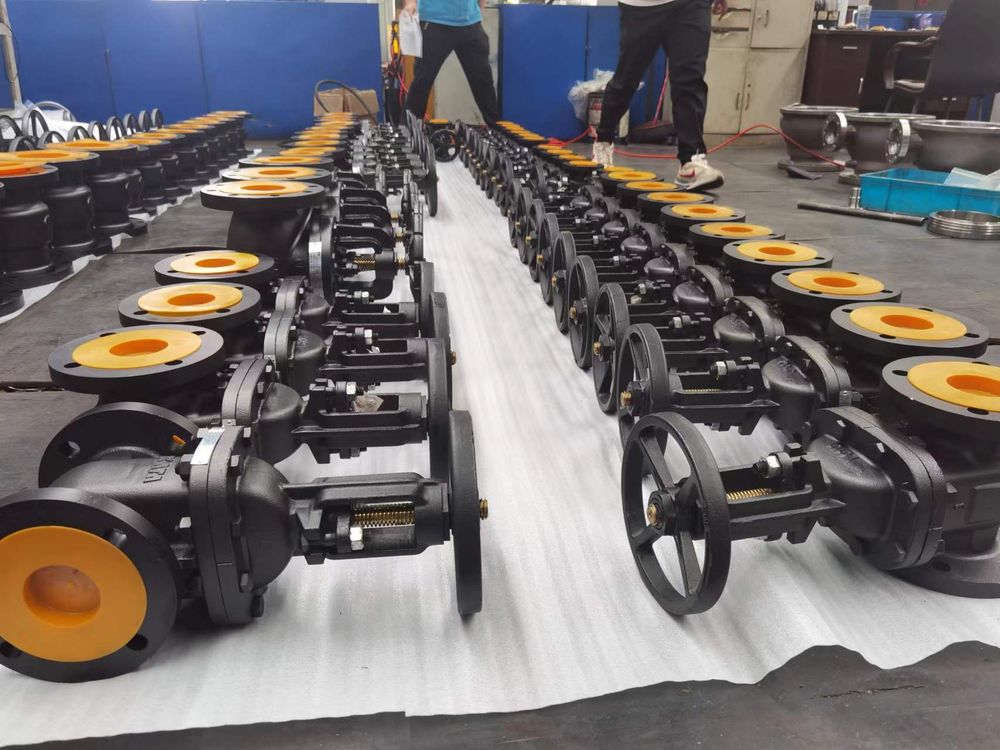

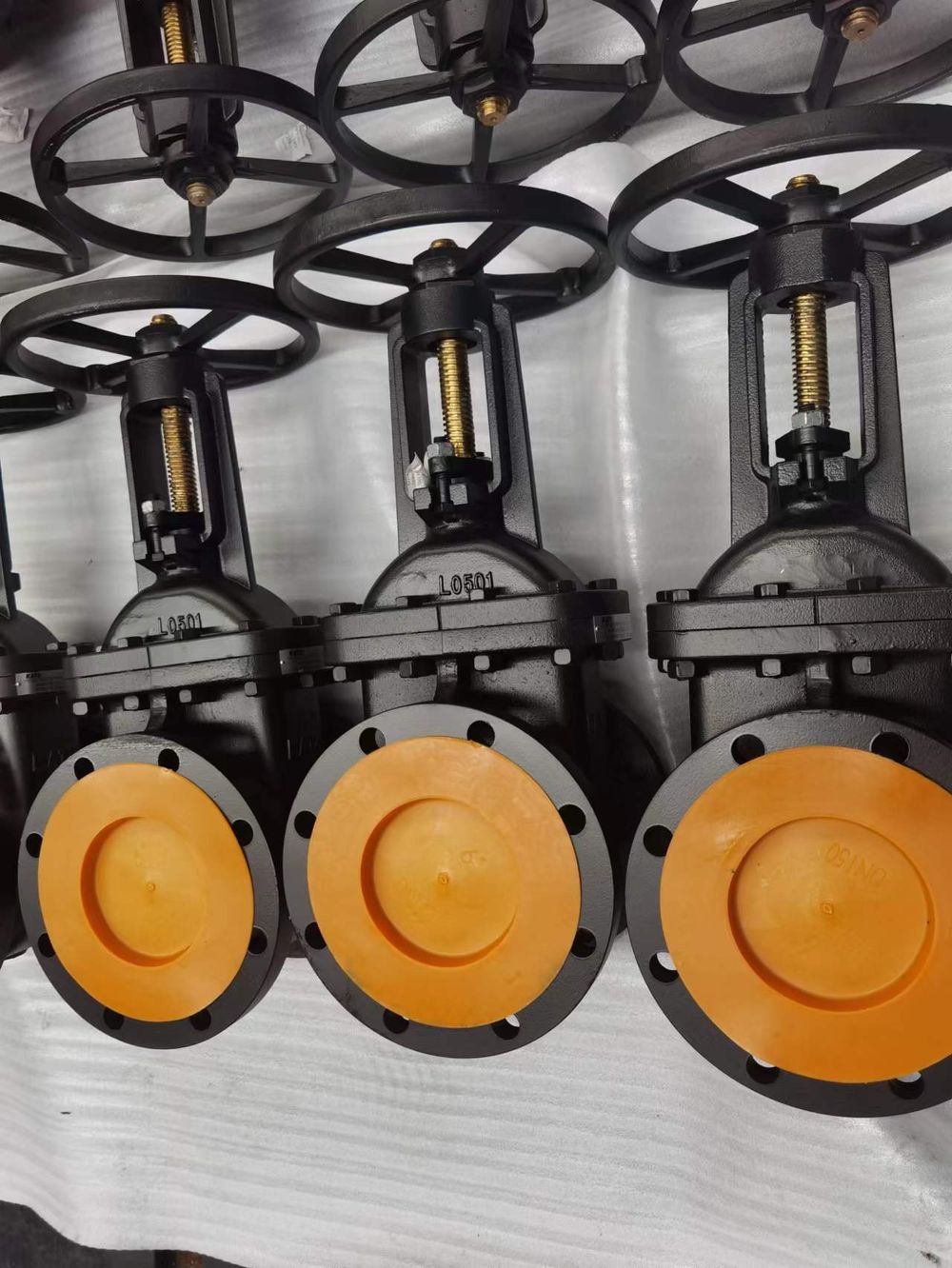

KATA gate valve KATA gate valve KATA gate valve KATA gate valve KATA gate valve KATA gate valve
02

Gate Valve

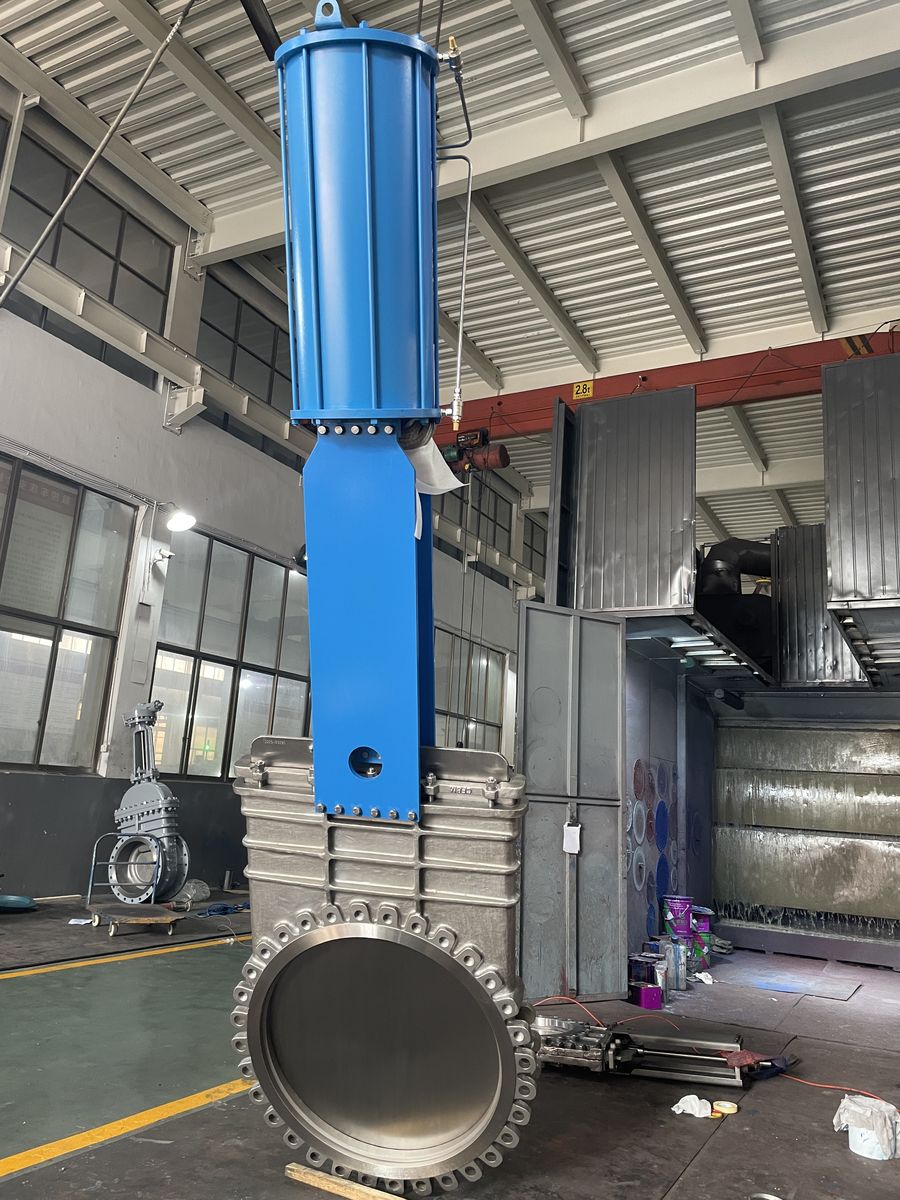

Cast Steel · Cryogenic · Pressure Seal · Forged · Slab · Knife

Size1/2″–56″Class150–4500 / PN10–16
Product Details
ApplicationsPetroleum, natural gas, petrochemical and process industries — full open/close isolation; not for throttling
DesignsCast steel 1/2″–56″ · Cryogenic 2″–24″ (to −196 °C) · Pressure seal 2″–24″ · Forged 1/2″–4″ (CL150–4500) · Slab 2″–48″ · Knife 2″–32″
StandardsAPI 600 · API 602 · API 6D · BS 1414 · BS 5352 · ASME B16.34
FeaturesFull-port, OS&Y · pressure-seal bonnet for high temperature · cryogenic extended bonnet · flexible wedge / parallel slide options · Stellite® hardfacing
MaterialsWCB · WC6/WC9 · C5/C12 · CF8/CF8M · A105 · LF2 · stainless
ActuationHandwheel · gearbox · electric · pneumatic · hydraulic

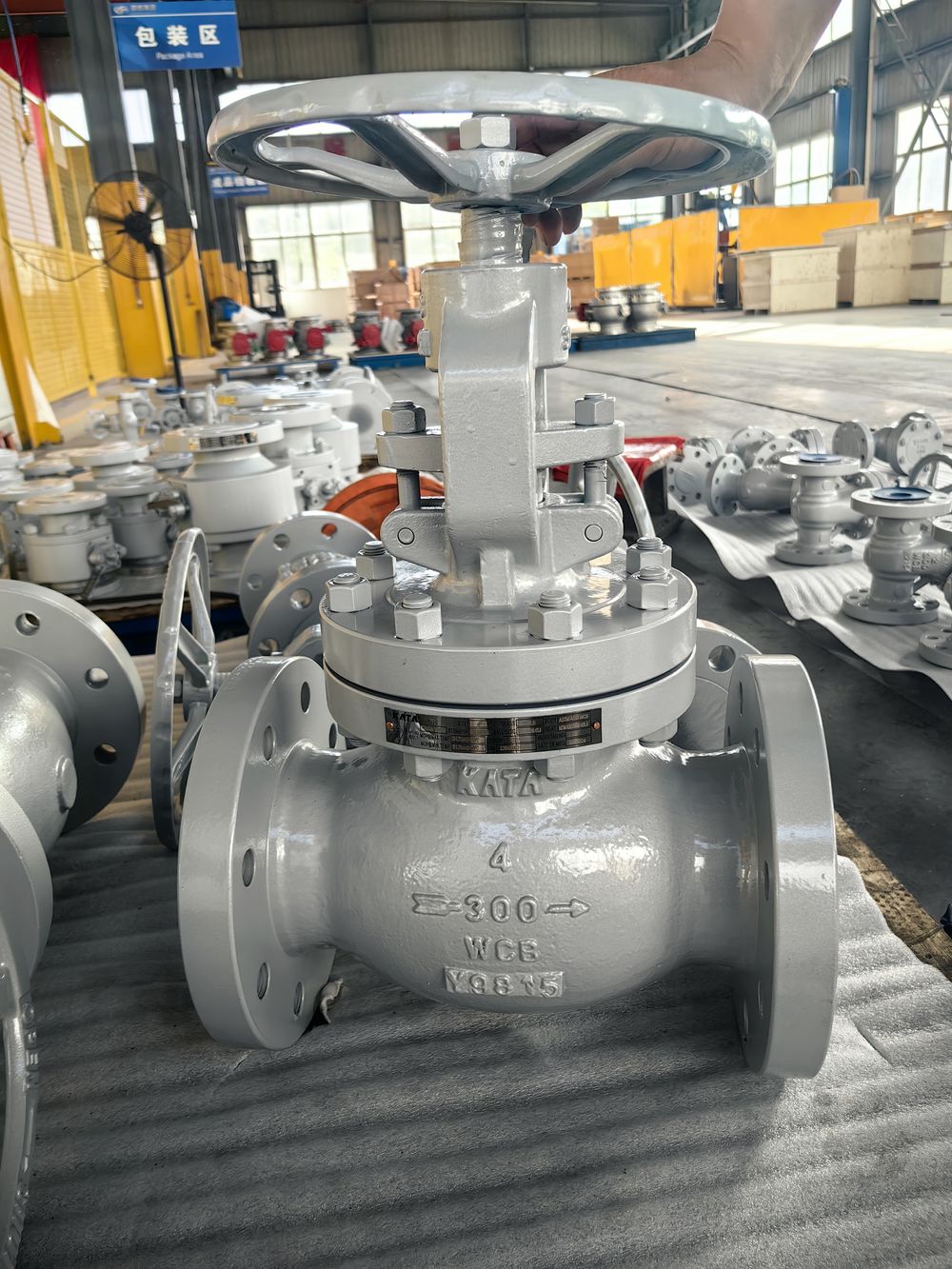

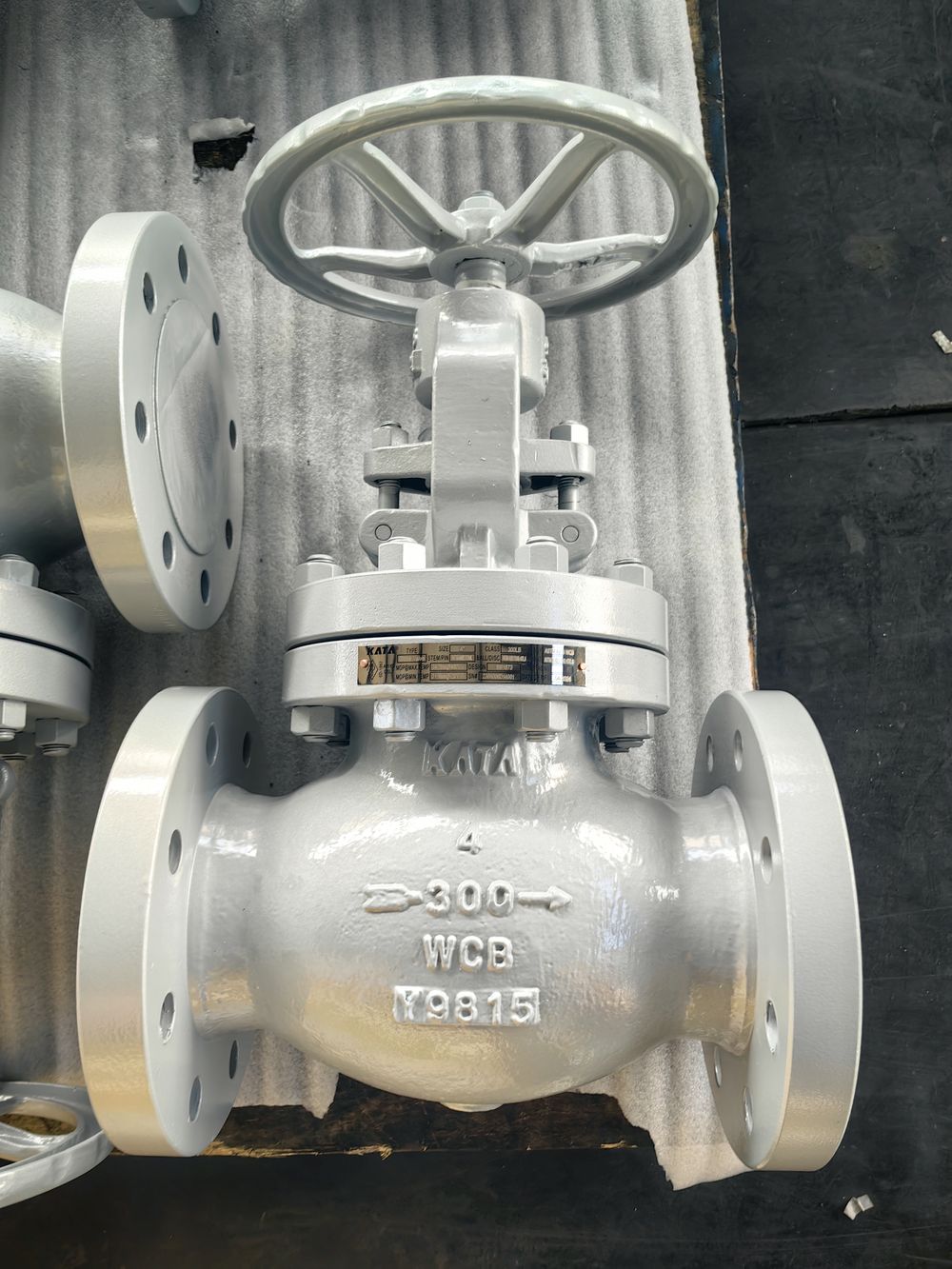

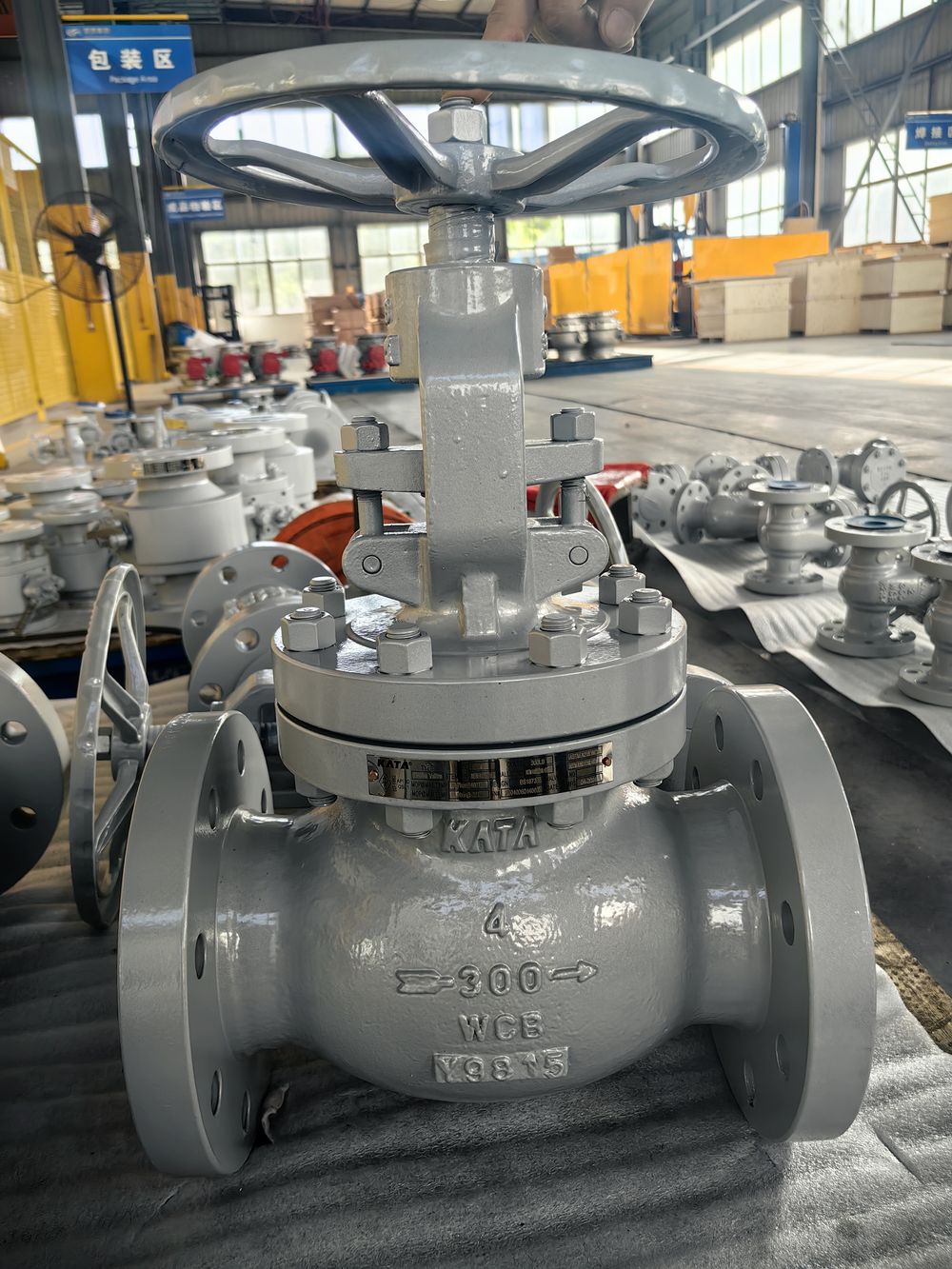

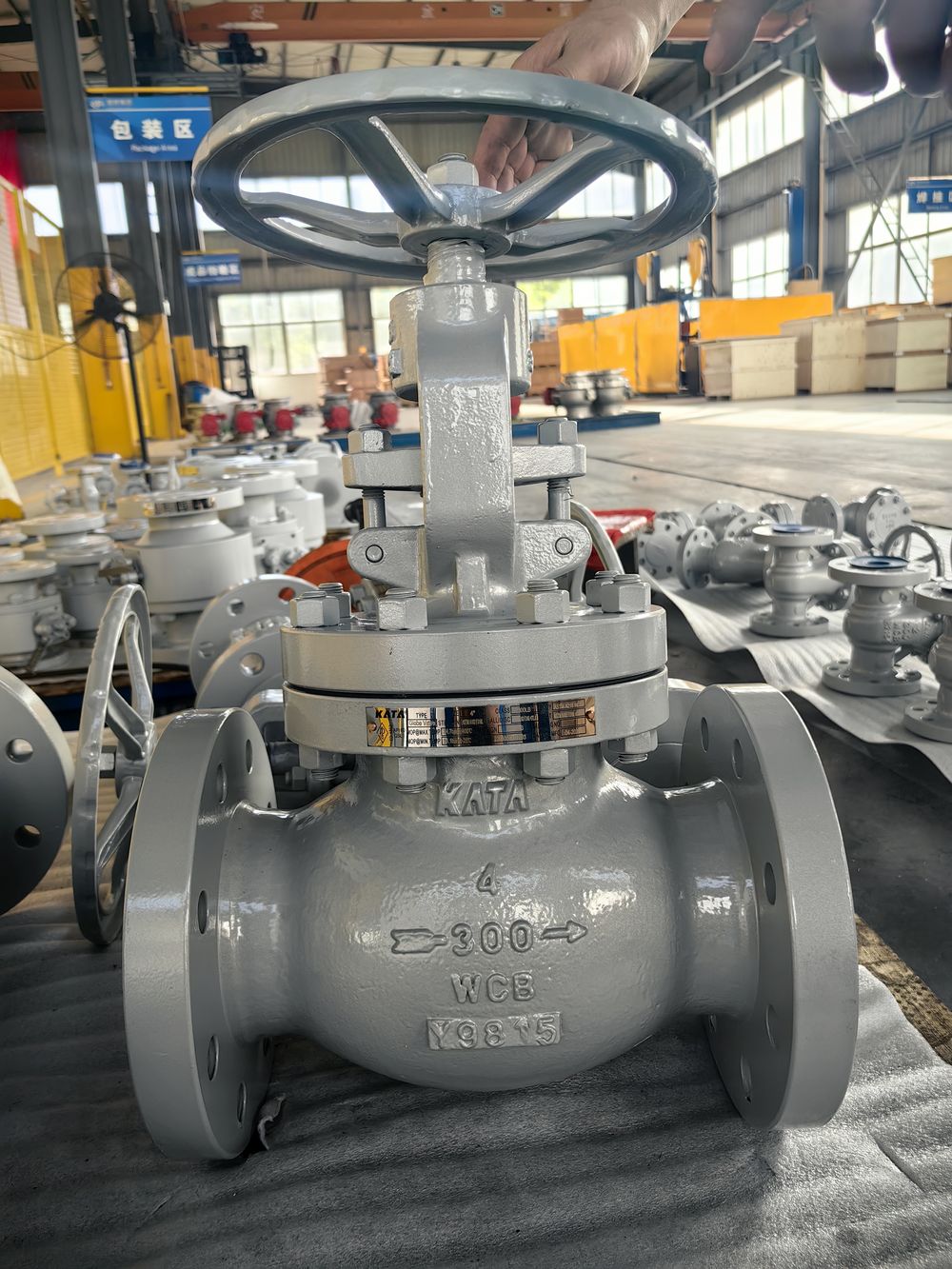

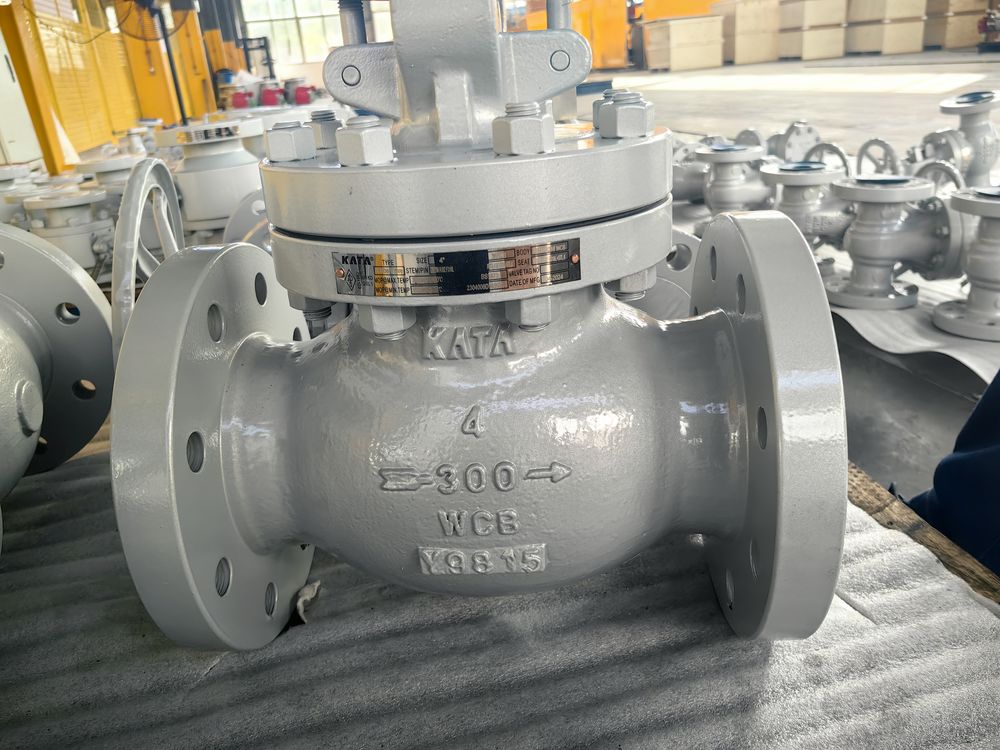

KATA globe valve KATA globe valve KATA globe valve KATA globe valve KATA globe valve KATA globe valve
03

Globe Valve

Cast Steel · Pressure Seal · Bellow Seal · Forged

Size1/2″–24″Class150–2500
Product Details
ApplicationsThrottling & flow adjustment plus on/off — pressure-seal type for high-temperature power plants; bellow-seal type where zero fugitive emissions matter
DesignsCast steel 2″–20″ · Pressure seal 1/2″–24″ · Bellow seal 1/2″–18″ · Forged 1/2″–2″ (CL800–1500)
StandardsAPI 600 · BS 1873 · ASME B16.34 · API 6D
FeaturesThrottling & flow adjustment plus on-off · pressure seal for high-temperature power service · bellow seal for zero fugitive emissions · renewable seat rings
MaterialsWCB · WC6/WC9 · C5/C12 · CF8/CF8M · A105 · A890 GR4A duplex
ActuationHandwheel · worm gear · gearbox · electric · pneumatic

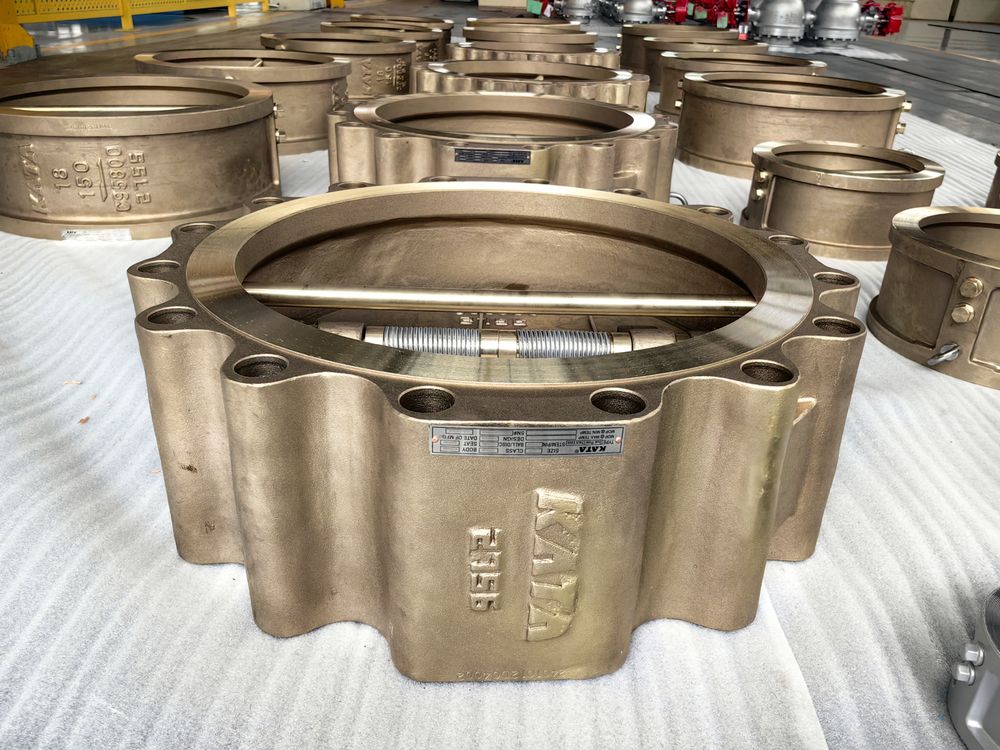

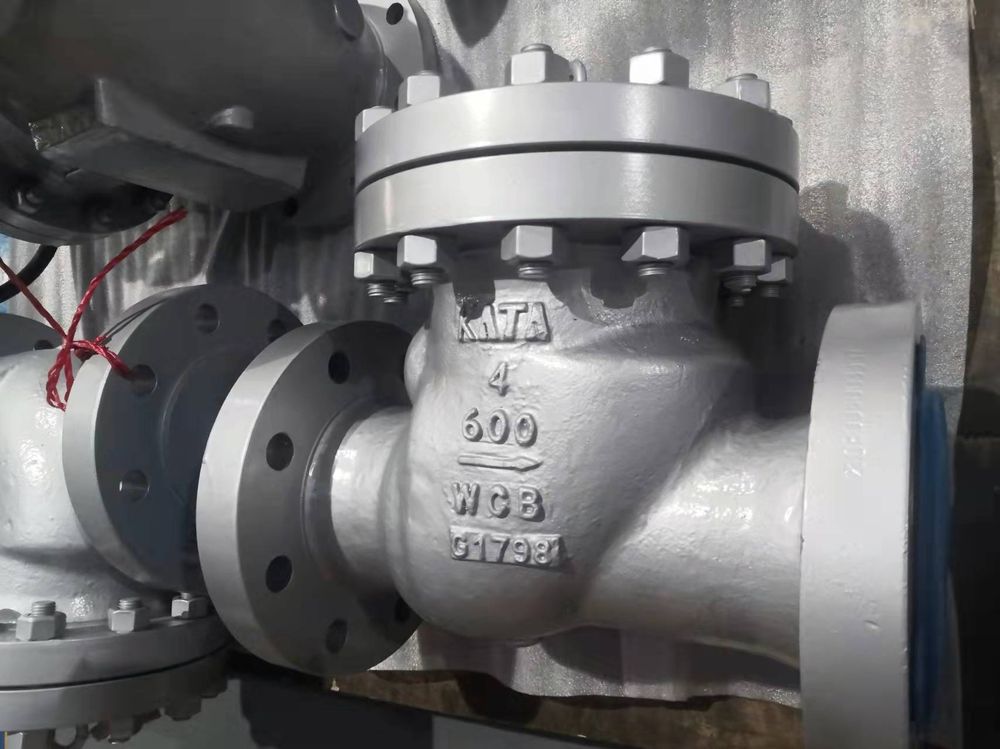

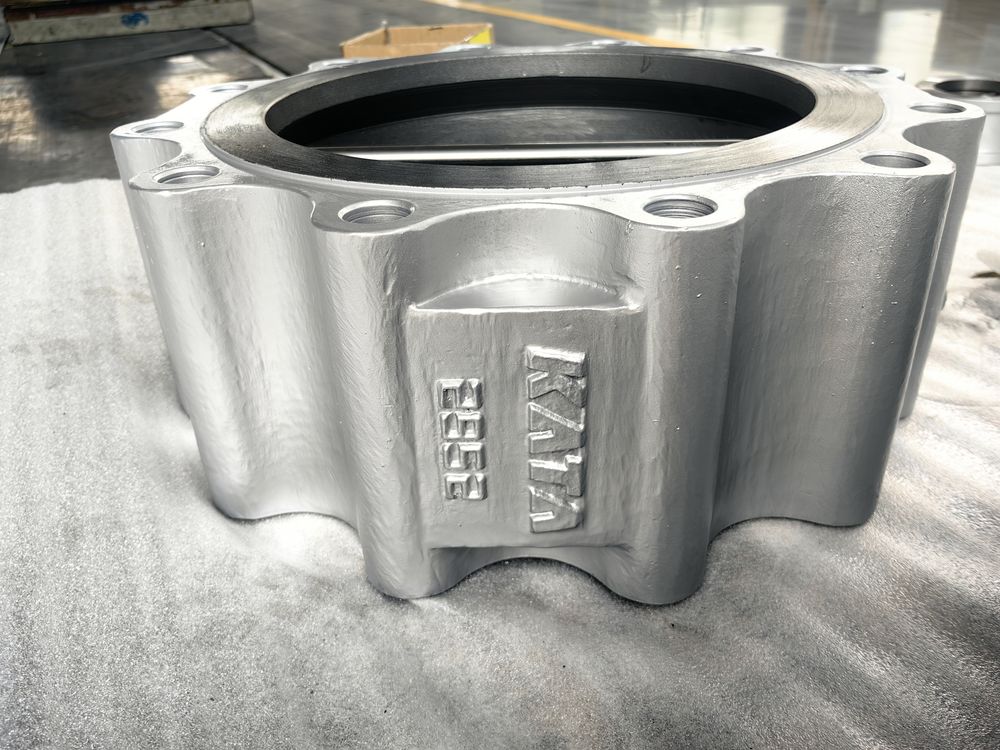

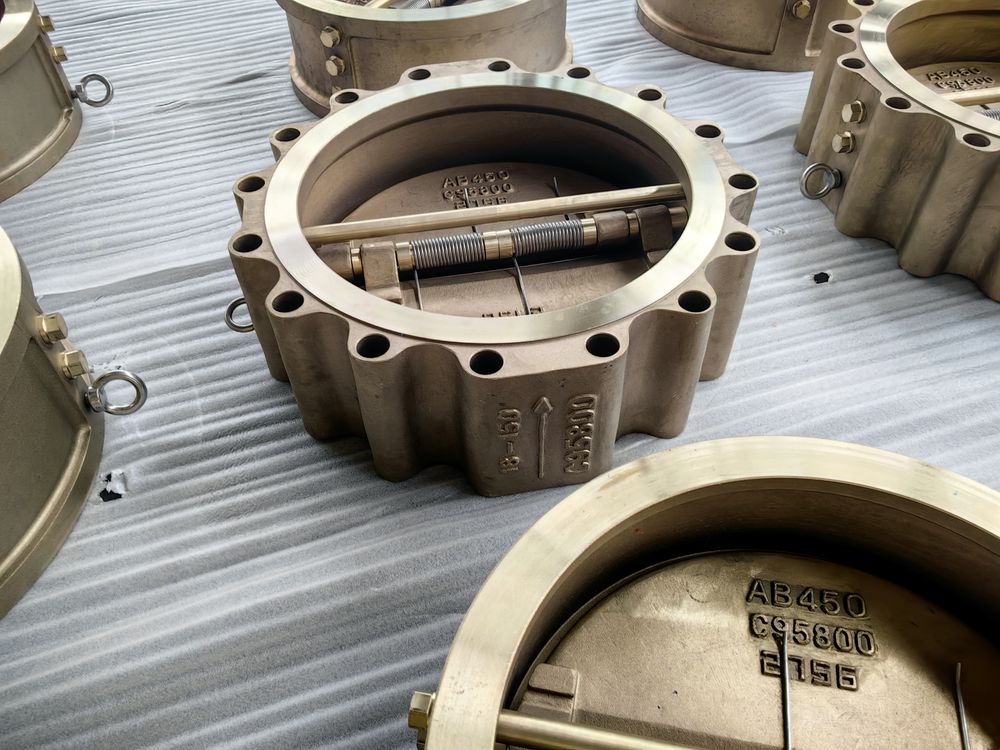

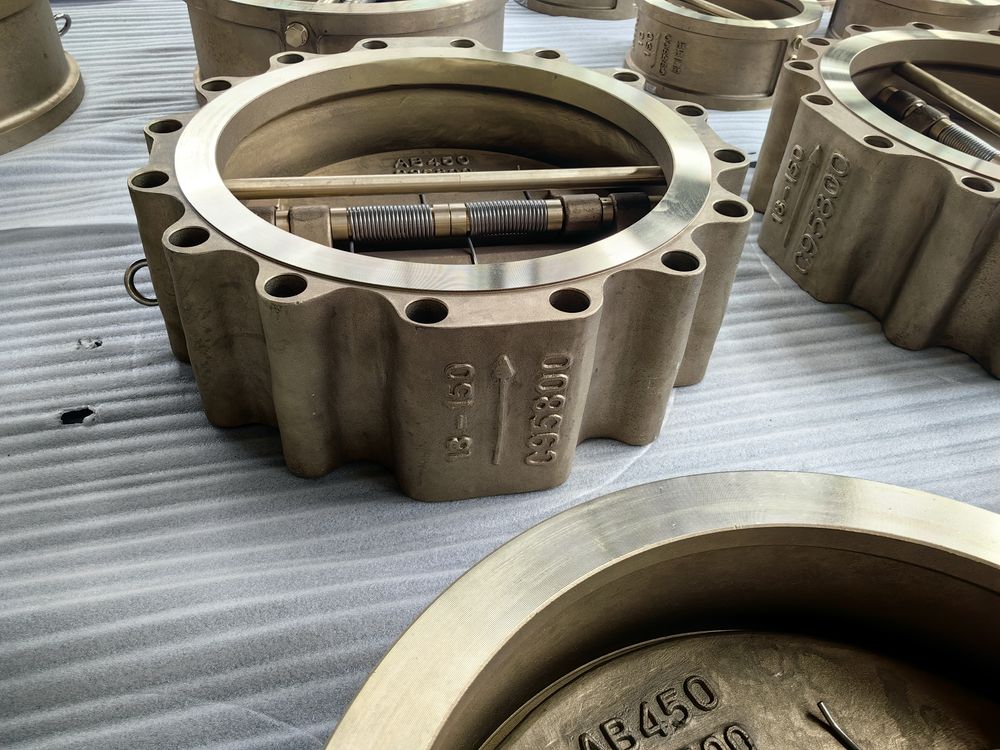

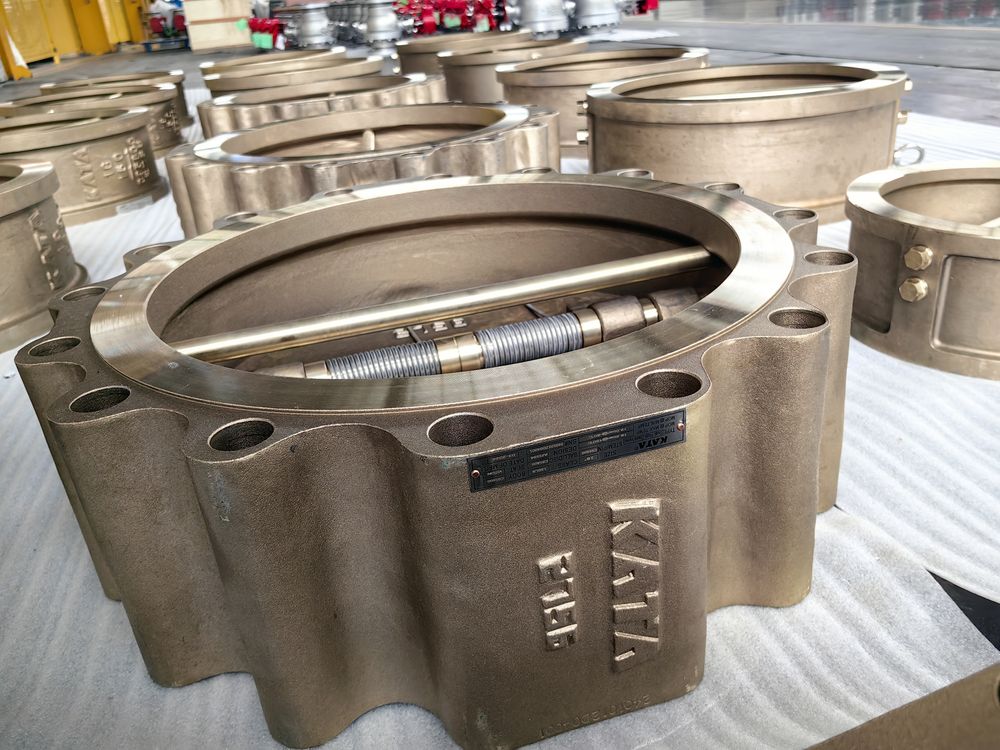

KATA check valve KATA check valve KATA check valve KATA check valve KATA check valve KATA check valve
04

Check Valve

Swing · Forged · Dual Plate · Lift / Piston

Size1/2″–42″Class150–2500
Product Details
ApplicationsBackflow prevention, pump & compressor protection, vessel discharge lines
DesignsSwing 1/2″–42″ (−196 to +560 °C) · Forged 1/2″–2″ · Dual plate 2″–24″ (to 1600 mm) · Lift / piston 2″–36″
StandardsBS 1868 · API 594 · API 6D · BS 5352
FeaturesNon-slam dual-plate design · damping-cylinder option on swing type · rapid closing with low water hammer · cryogenic & high-temperature capable
EndsRF · RTJ · butt weld

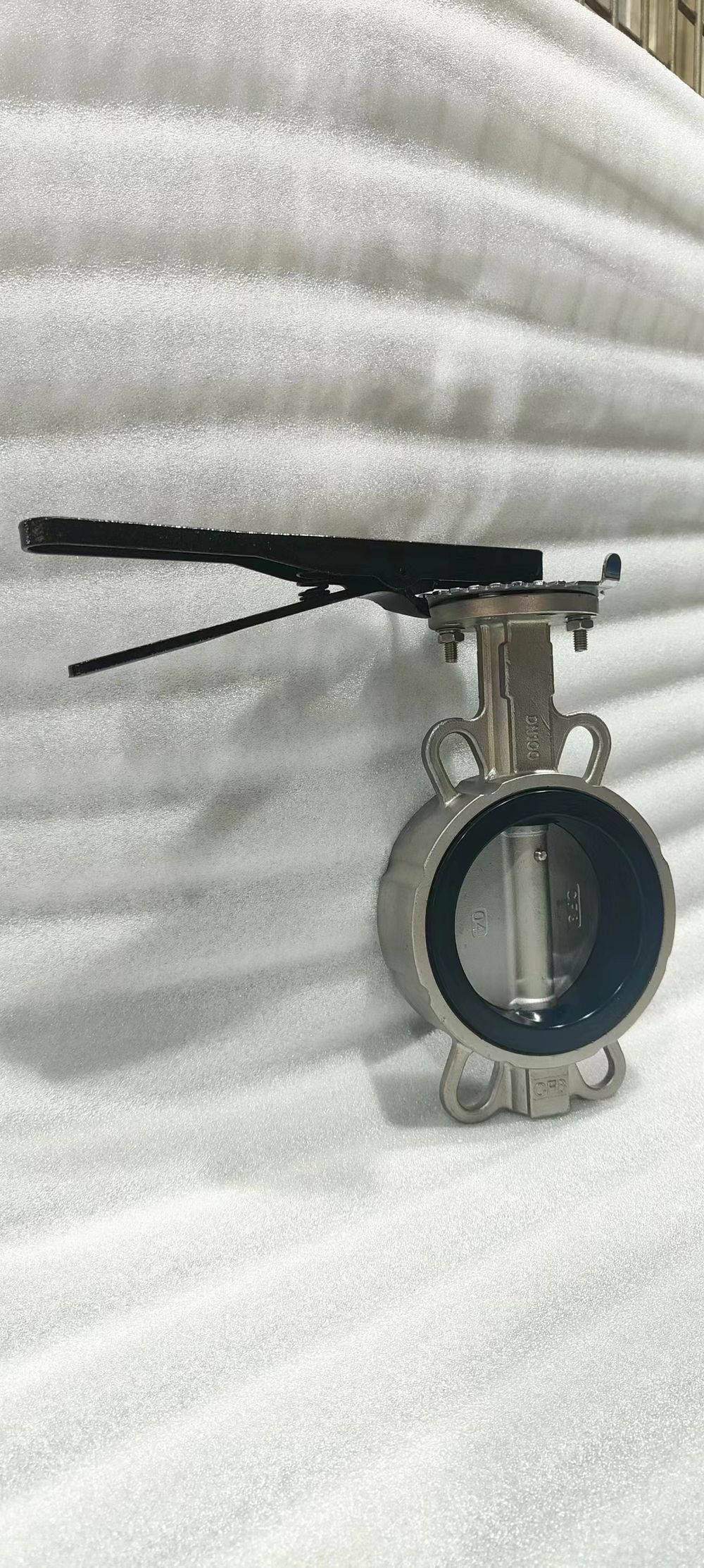

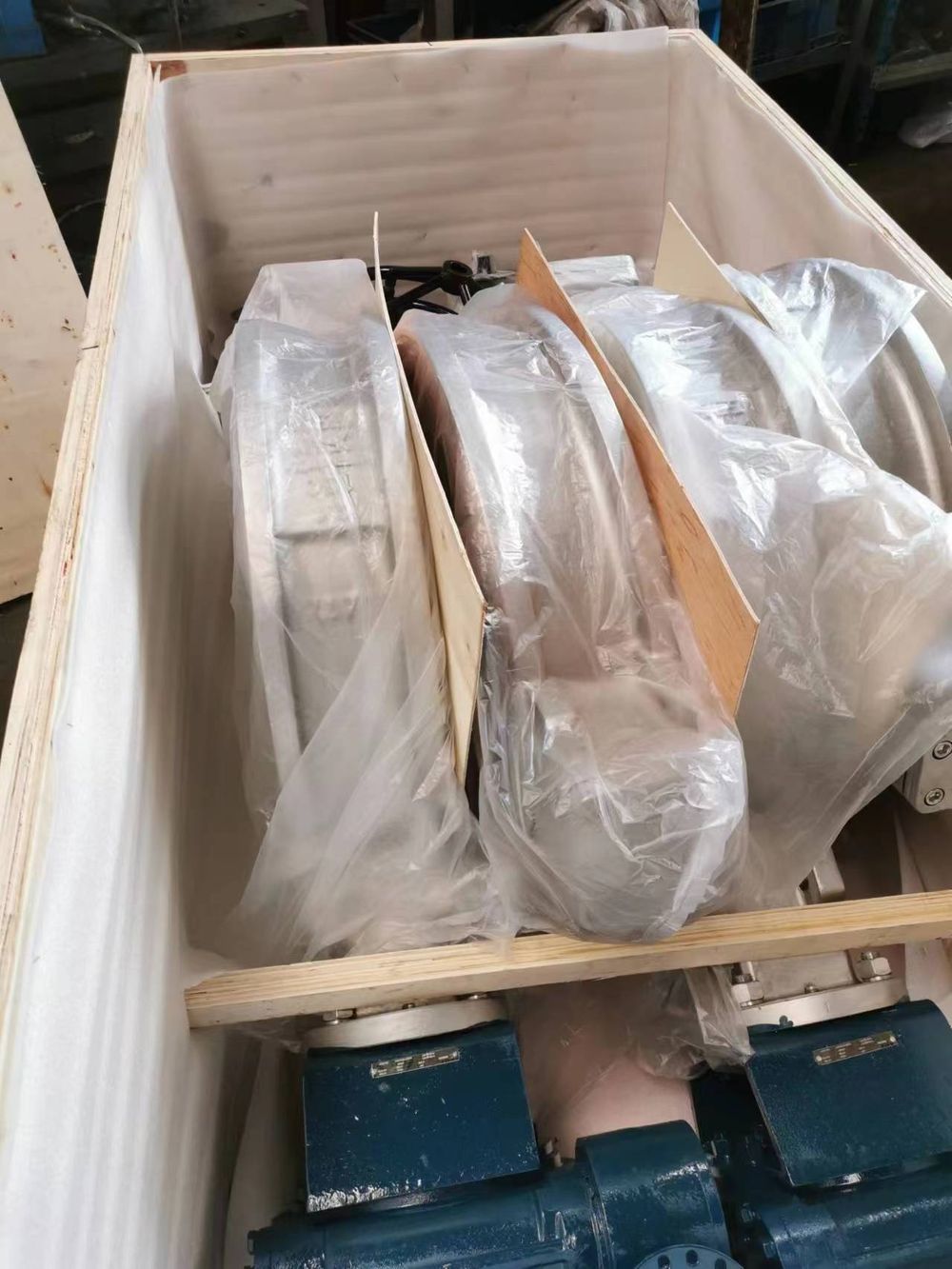

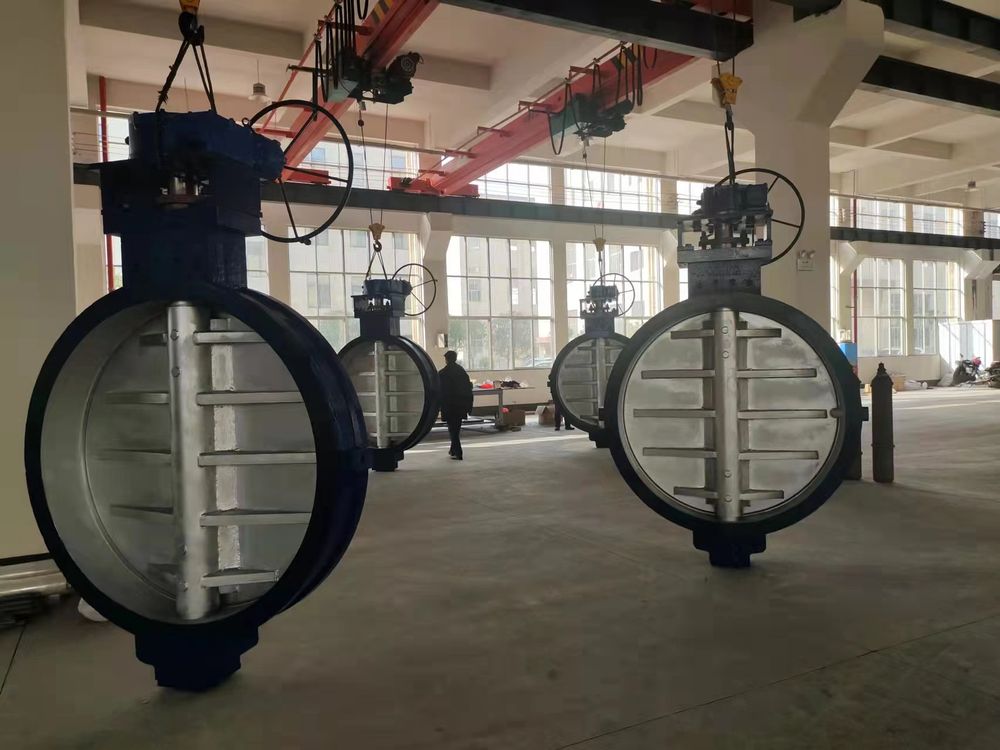

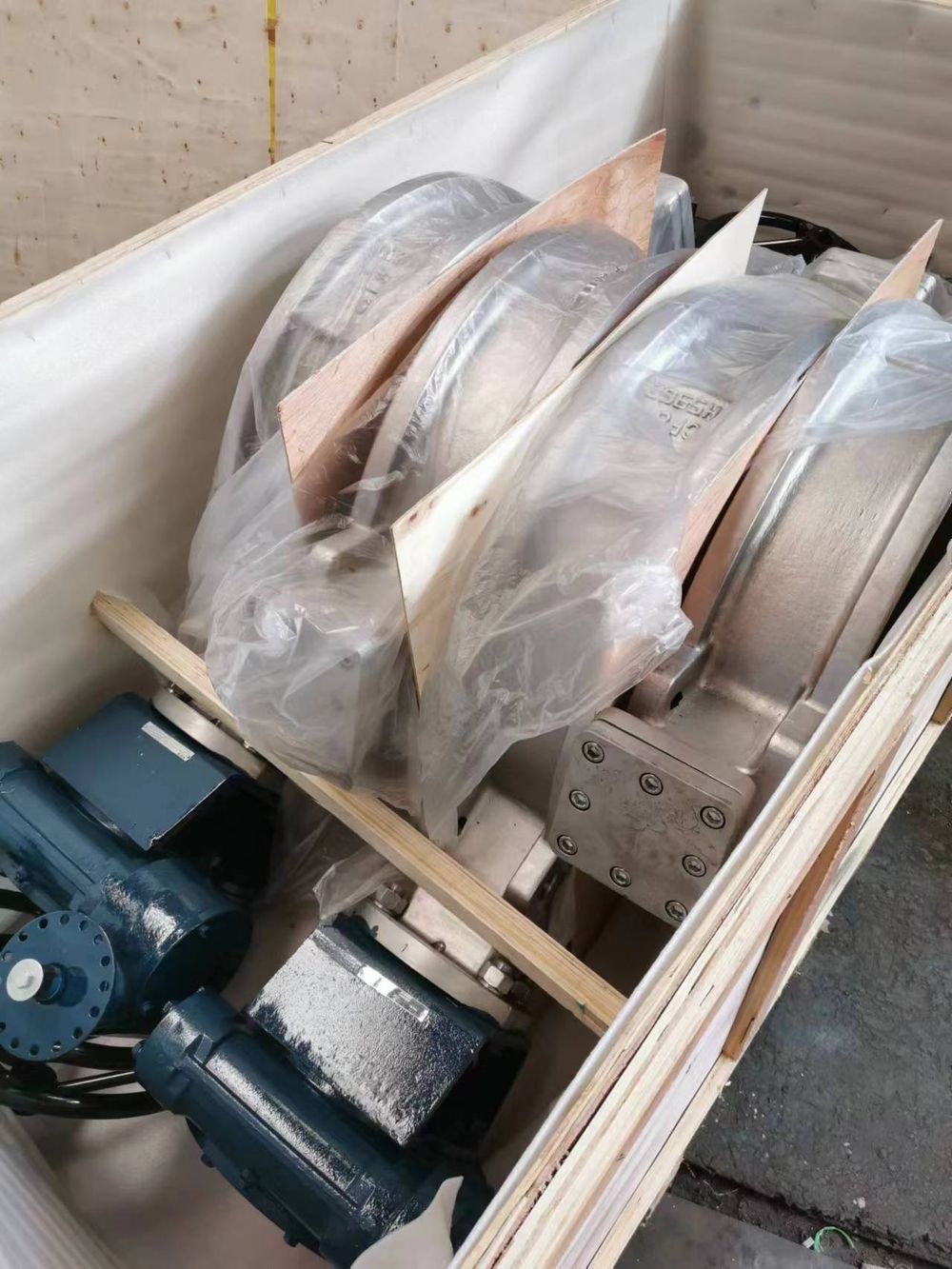

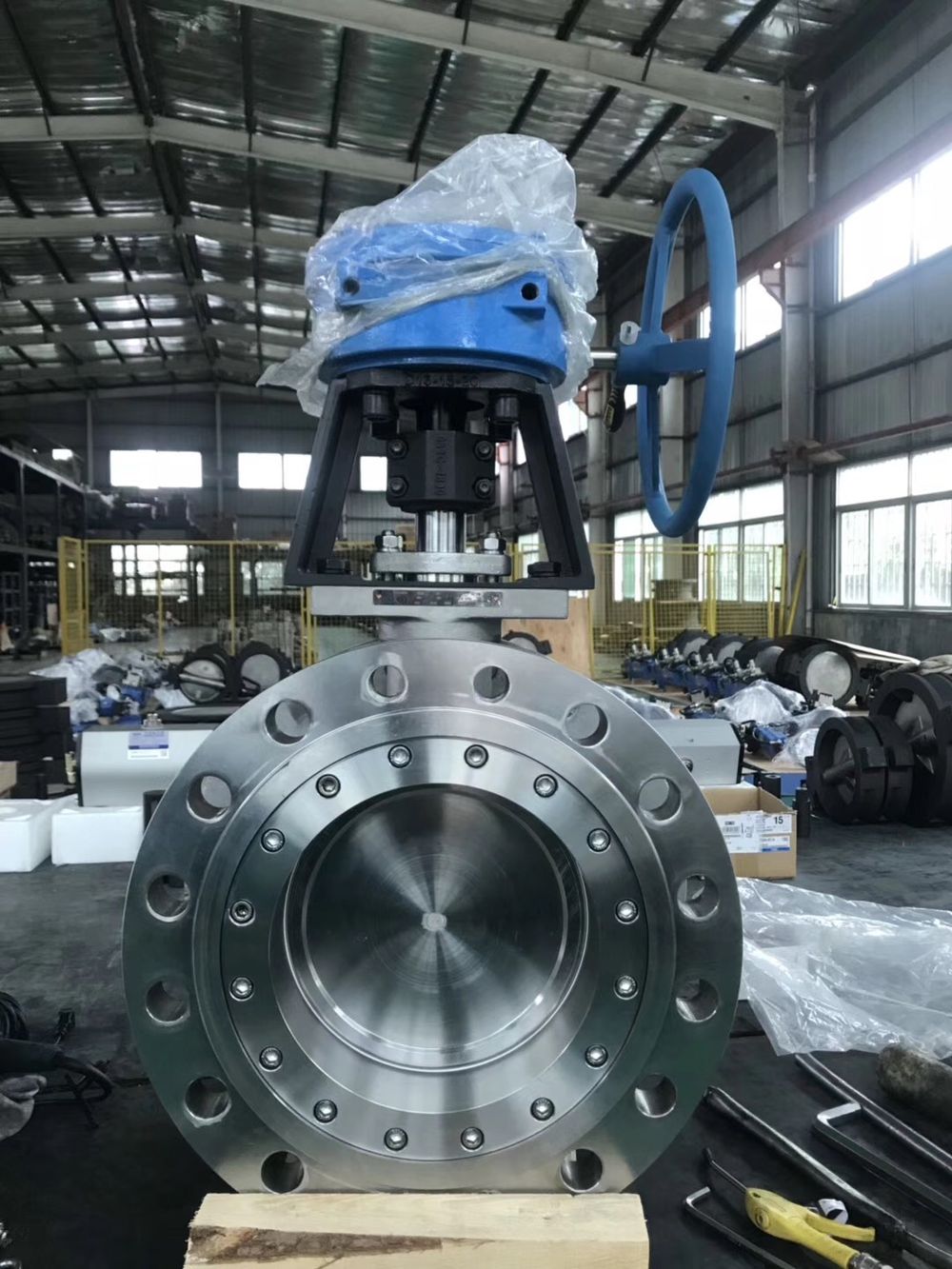

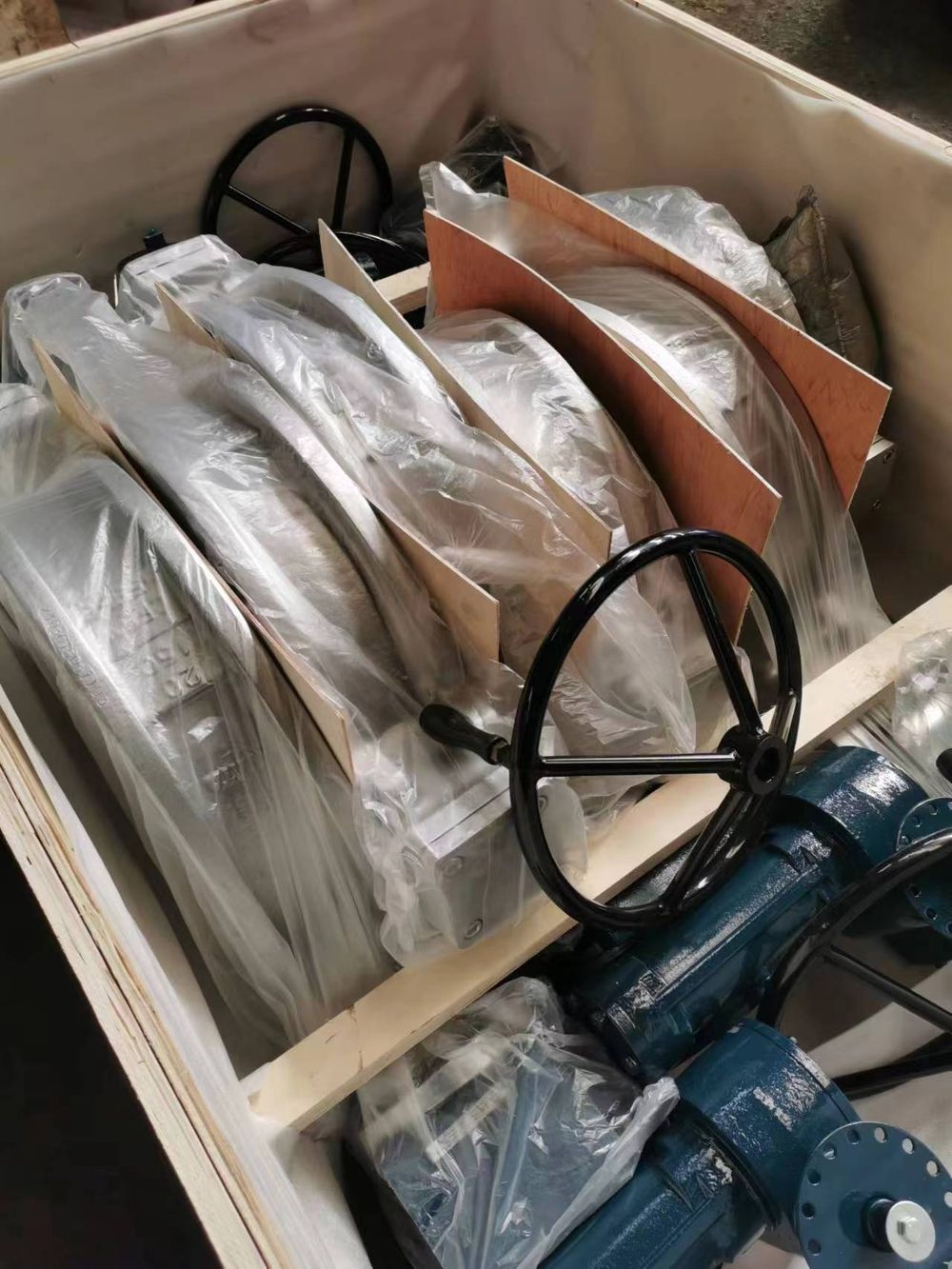

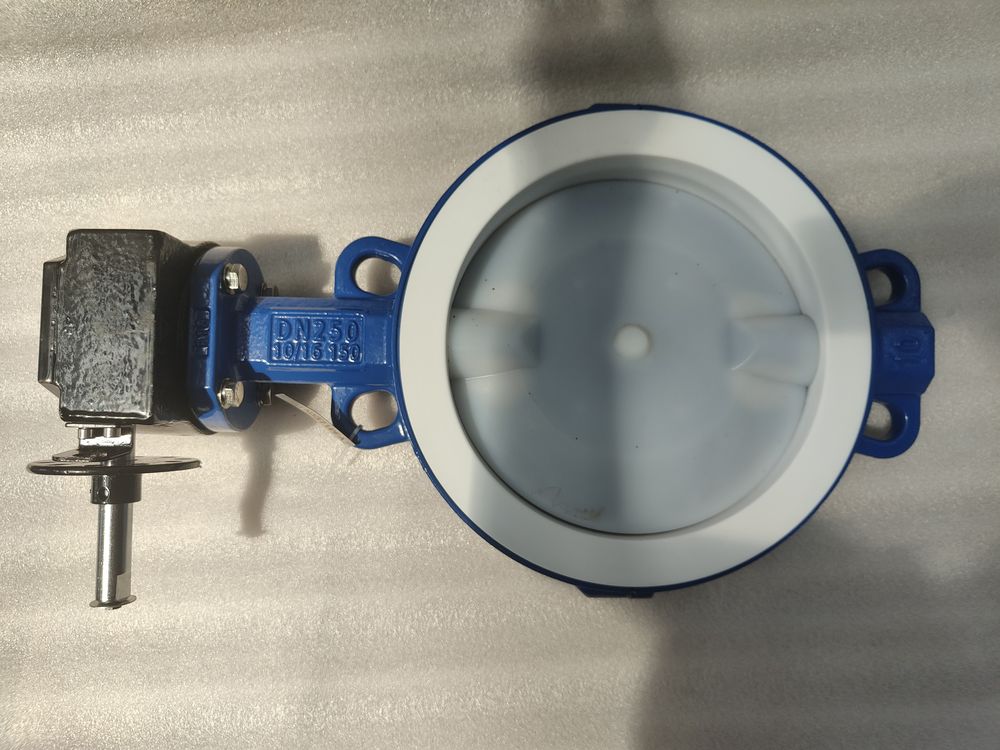

KATA butterfly valve KATA butterfly valve KATA butterfly valve KATA butterfly valve KATA butterfly valve KATA butterfly valve KATA butterfly valve
05

Butterfly Valve

Wafer Soft Seal · Triple Eccentric

Size2″–180″Class150–600 / PN10–100
Product Details
ApplicationsWater & wastewater, oilfield, agriculture and mining (soft seal) — triple eccentric for critical, high-performance service with flow adjustment
DesignsWafer soft seal 2″–48″ (zero leakage) · Triple eccentric 2″–180″ (−46 to +200 °C)
StandardsAPI 609 · EN 593 · AWWA C504 · ASME B16.34
FeaturesBi-directional sealing · soft-seat leakage ANSI B16.104 Class VI · triple-eccentric metal seat for critical service · wafer, lug or flanged body
MaterialsGG25 · GGG40 · A126 B · WCB · LCB · CF8/CF8M
ActuationLever · gear · pneumatic · electric · hydraulic

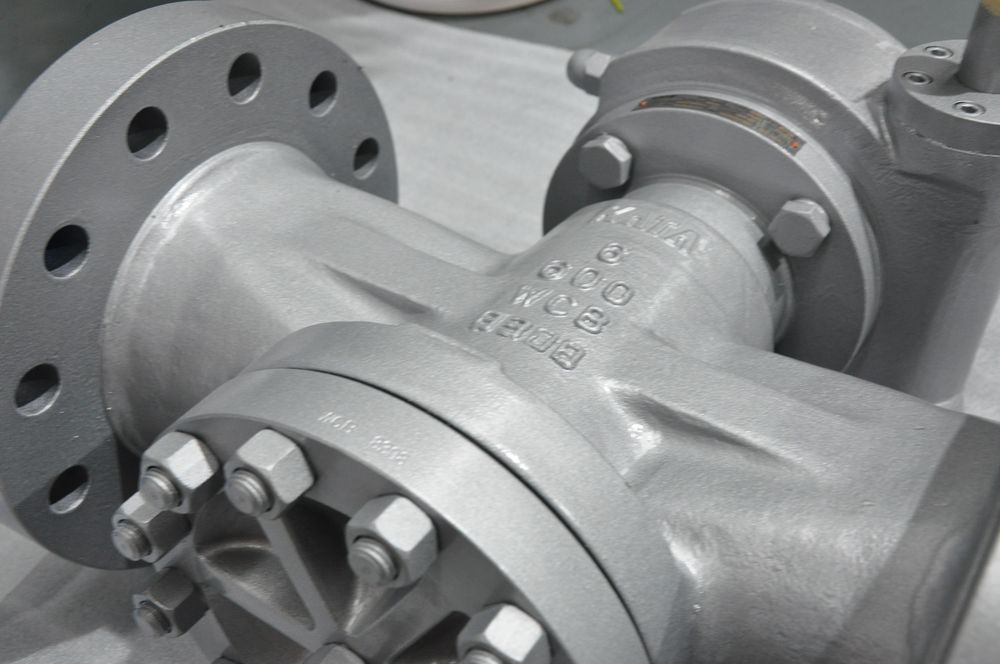

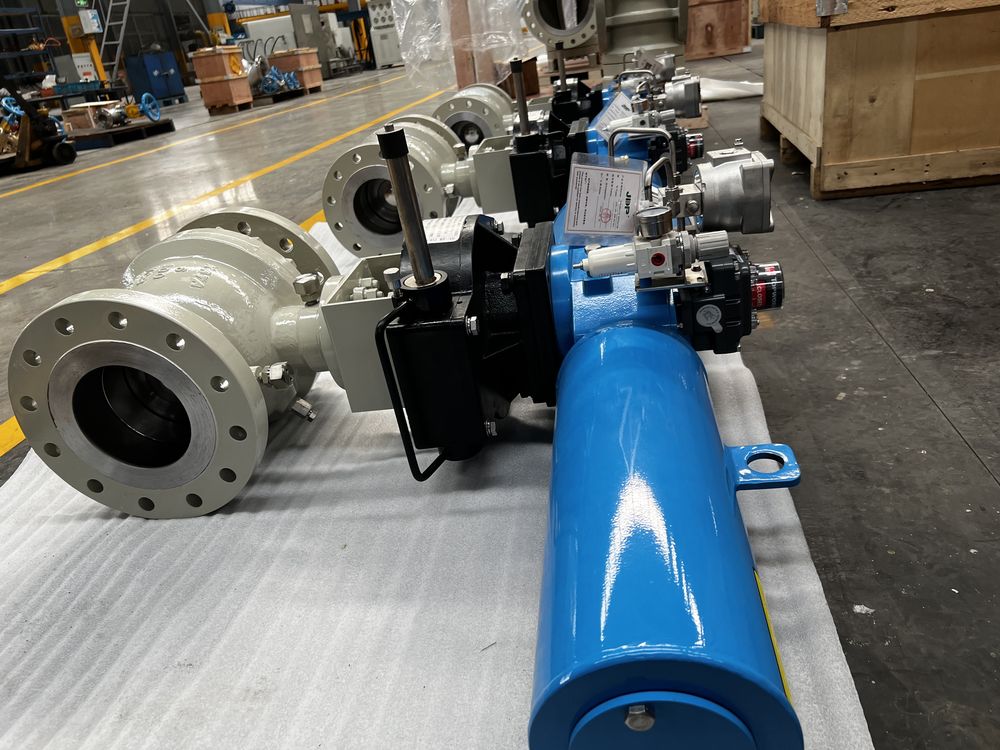

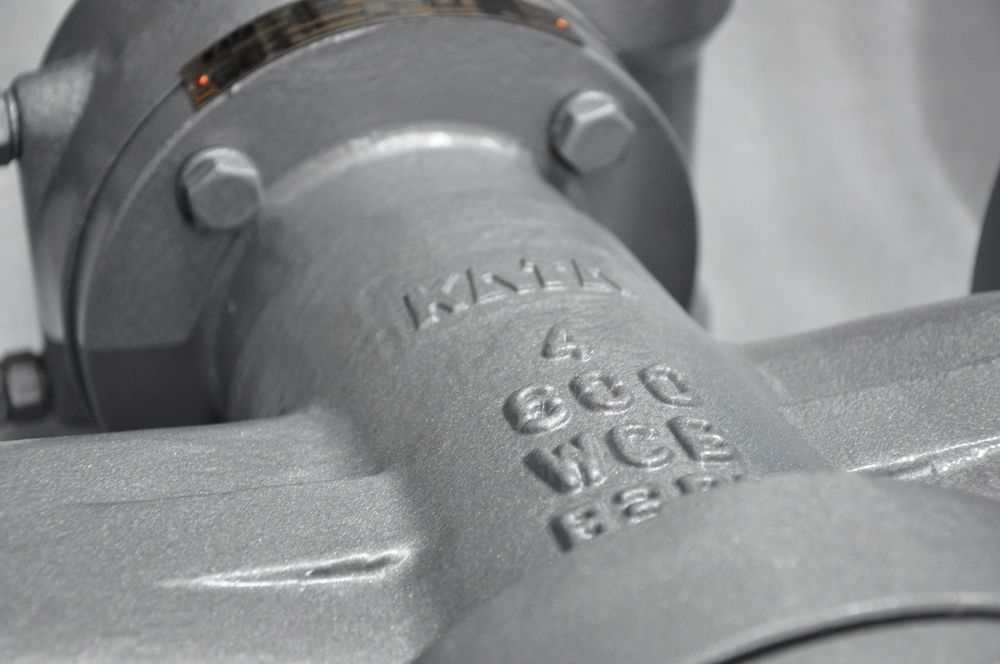

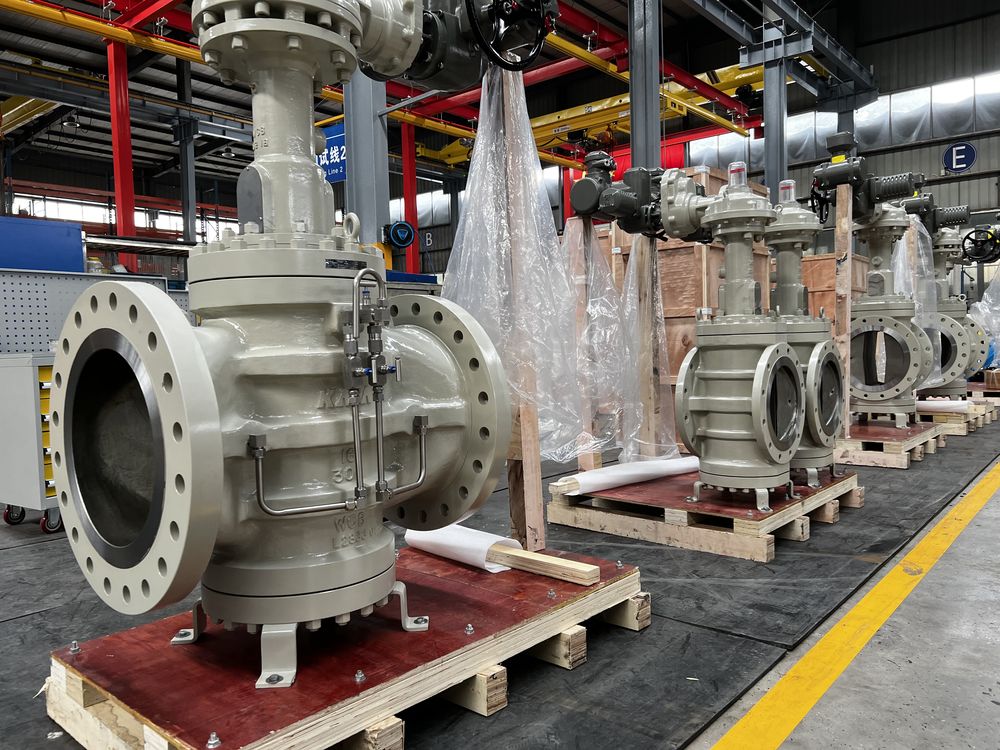

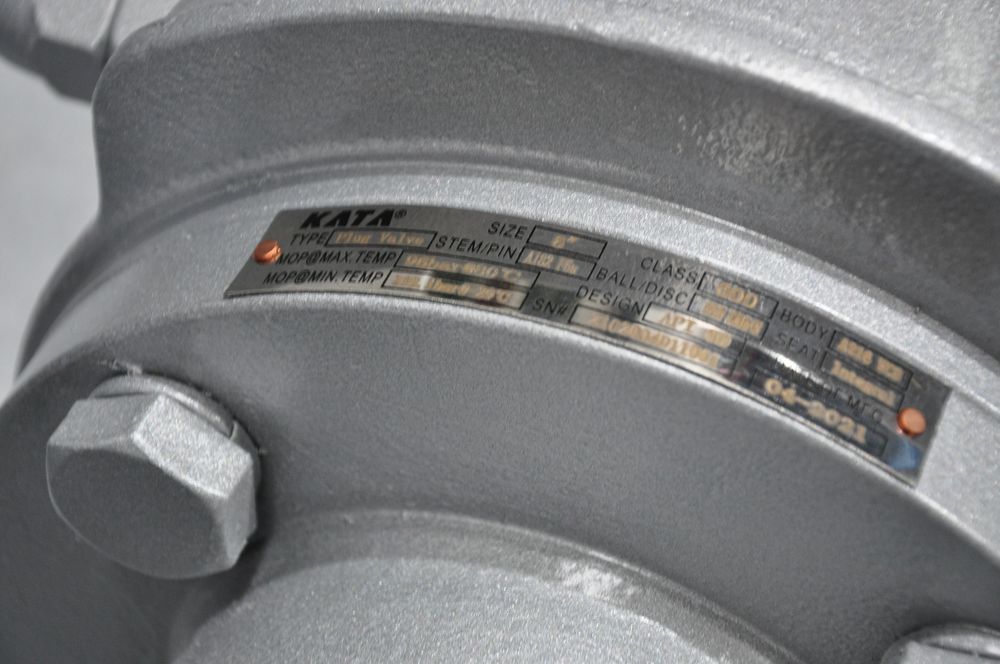

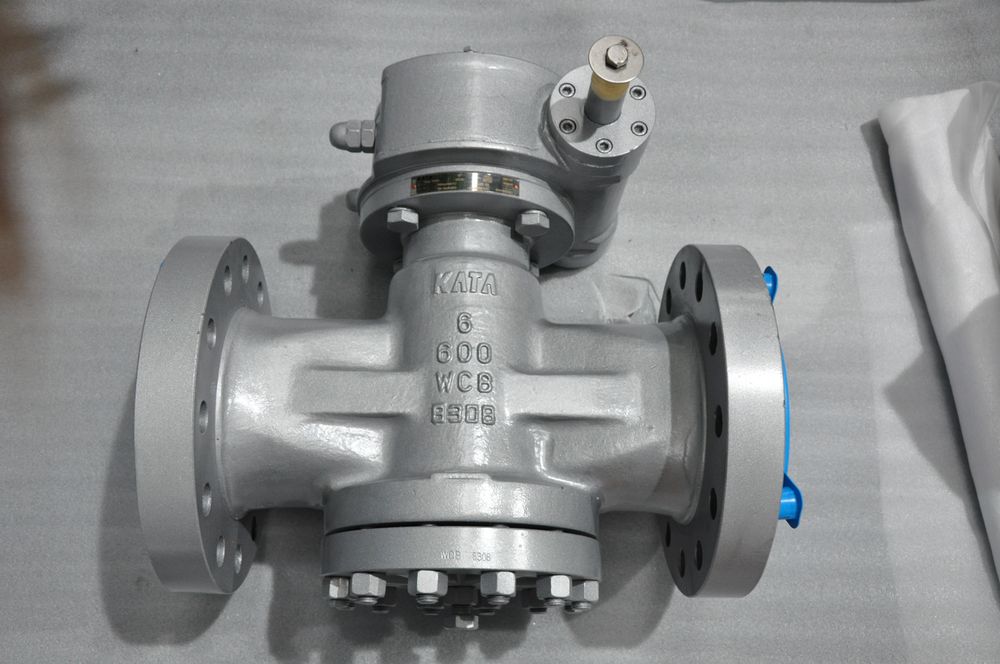

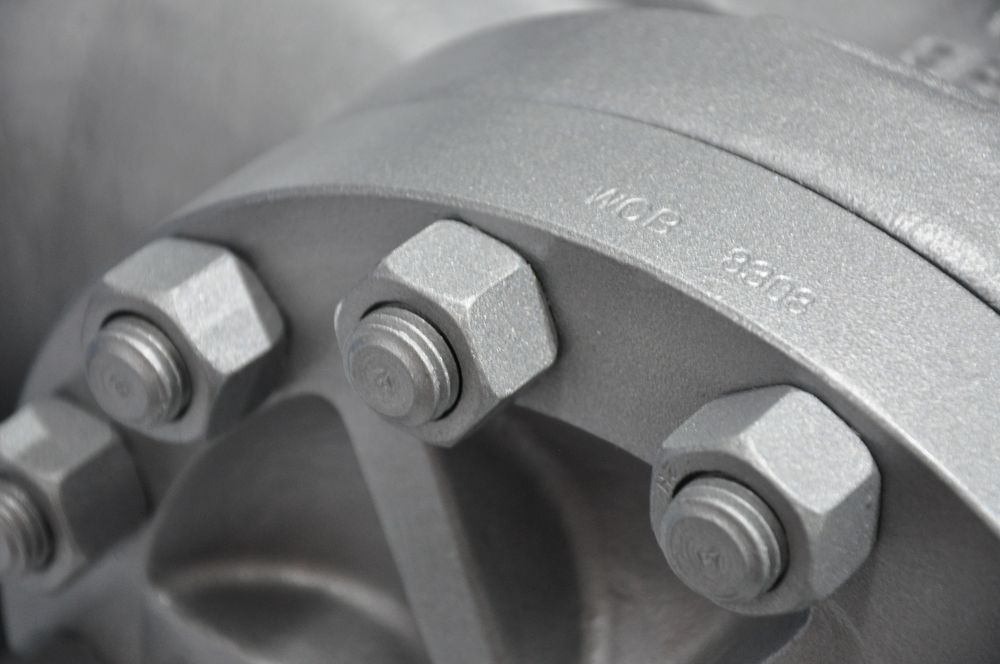

KATA plug valve KATA plug valve KATA plug valve KATA plug valve KATA plug valve KATA plug valve KATA plug valve
06

Plug Valve

Lift Plug · Sleeve Soft Seat · Lubricated

Size1/2″–42″Class150–1500
Product Details
ApplicationsPetroleum, chemical, pharmaceutical, fertilizer and power industries — where no-cavity, bi-directional sealing matters
DesignsLift plug 1/2″–42″ · Sleeve soft seat (CL150–900) · Inverted pressure-balance lubricated 2″–28″
StandardsAPI 599 · API 6D · ANSI B16.10 / B16.5 / B16.25
FeaturesLift-then-turn operation — no seat abrasion · no cavity for media accumulation · self-cleaning metal edge · seal-grease injection option · bi-directional
Service−29 °C to +550 °C

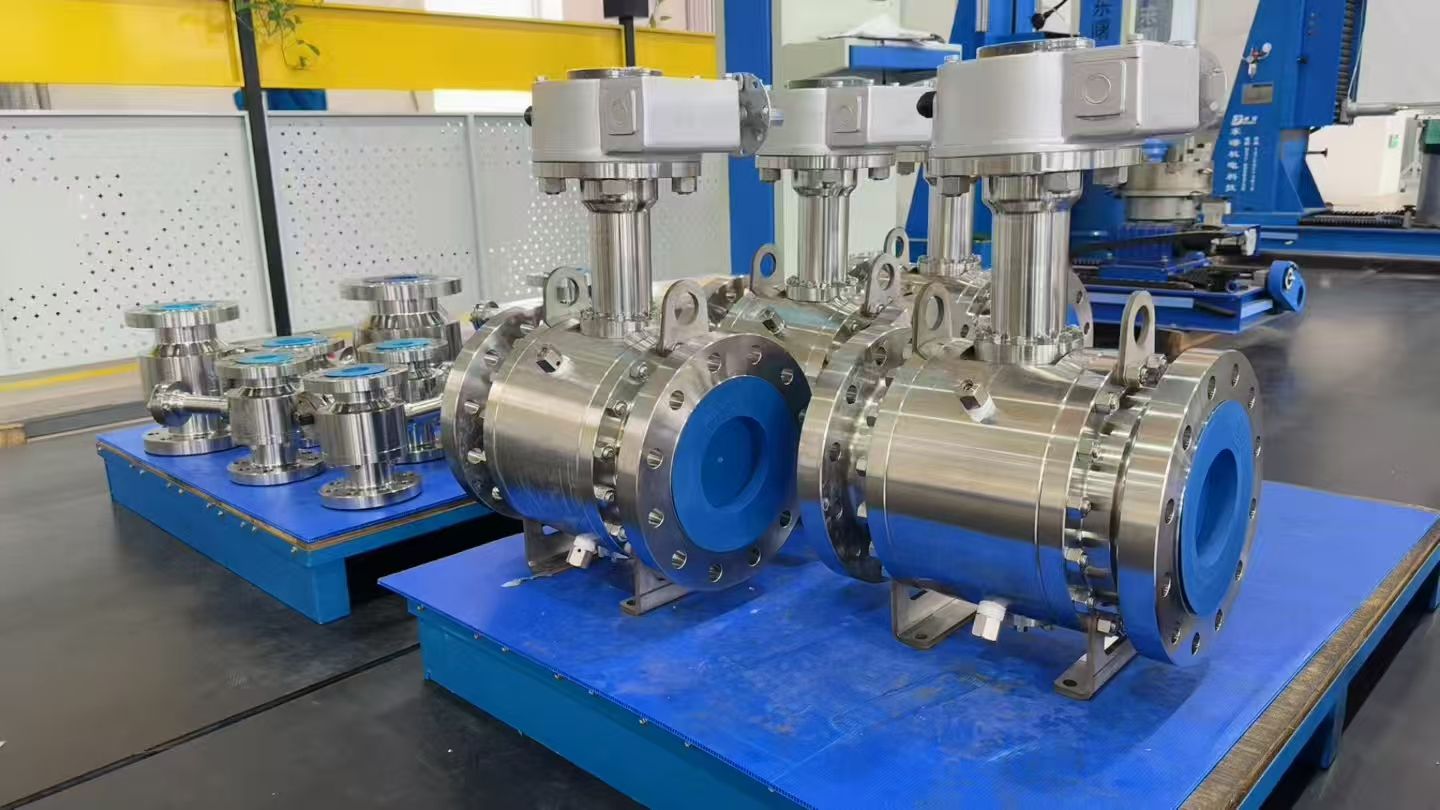

KATA cryogenic valve for LNG serviceSpecialty

Cryogenic Valves

Ball & gate — LNG / low-temperature service

Service−196 °CApprovalDNV TAP000036BRange1/2″–16″Class150–2500

KATA's differentiator: cryogenic ball and gate valves engineered, assembled and tested for −196 °C — DNV type-approved, with a dedicated liquid-nitrogen laboratory behind every unit.

Explore the Cryogenic Range →
−196 °C

LNG-grade cryogenic capability

KATA's specialty is cryogenic ball and gate valves for LNG and low-temperature applications — type-approved by DNV (TAP000036B) and tested in the factory's low-temperature laboratory with liquid nitrogen. Verification documentation is available for project qualification.

Explore the Cryogenic Range →

Built for the sectors that keep industry moving

01Oil & Gas 02LNG & Cryogenic 03Petrochemical 04Power Generation 05Marine & Offshore 06Mining 07Pulp & Paper 08Water & Wastewater
Inside the Kata Valve (Group) Wenzhou plant, August 2026
05 · Factory Visit

We went to the factory. Follow the journey.

In August 2026, our team spent a full week at the Kata Valve (Group) plants in Shanghai and Wenzhou — the foundry, machining, assembly and test floors behind every KATA valve. A photo and video diary from the road.

Take the Tour
06 · Certifications & Quality

Certified to the standards your projects demand.

Certificates are held by Kata Valve (Group) Co., Ltd. Official copies are available for verification and vendor registration.

CertificationStandardIssuerValid until
API Q1Quality management systems — Spec Q1, 9th Ed.QMS for the manufacture of valvesAPI24 Jan 2028
API 6DPipeline and piping valvesDesign & manufactureAPI24 Jan 2028
ISO 9001:2015Quality management — design & manufacture of valvesAPI24 Jan 2028
CE-PED2014/68/EU — Pressure Equipment DirectiveNotified Body 0496DNV Business Assurance Italia14 Jun 2027
DNV Type ApprovalTAP000036BFloating / trunnion / cryogenic ball valvesDNV26 Apr 2031
SIL 3IEC 61508:2010 — Safety integrity level 3SC 3Ente Certificazione Macchine (IT)Per certificate
EACTR TS 010/2011Eurasian Economic UnionEAEUPer certificate
“

Quality First is Kaitai Valve Group philosophy. The factory's test facilities include a low-temperature laboratory (liquid-nitrogen cryogenic testing at −196 °C), 3D measuring instruments, spectral analysis, and Finite Element Analysis (FEA) simulation.

Test & inspection facilities — Kata Valve (Group) Co., Ltd.
View All Certifications →
07 · Track Record

Trusted by operators, EPCs and national oil companies.

Global references: approved supplier of Petrobras (Brazil) and KOC — Kuwait Oil Company; regular supplier to CNPC, Sinopec, and CNOOC (China); projects delivered for OQ (Oman), KOC / SPETCO (Kuwait), and Ha Tinh Steel (Vietnam).

YearProjectApplicationValves Supplied
2026PT Petrogas Jatim UtamaGas processing facility — LPG plant relocation & reactivationBall valve + pneumatic actuator (2″–8″, CL150–600)
2025Sinar Mas GroupFactory facilities building upGate, check, globe, butterfly (1/2″–12″)
2025CNPCOil / gas line maintenanceBall, butterfly
2024PT Asia Pulp & PaperPulp & paperBall, gate, check, butterfly, dual plate check
2024Pertamina Hulu Sanga-Sanga (PHSS)Gas lift skidBall, gate, check, globe (1/2″–2″, CL800–1500)
2020–21PetroChina International JabungJabung projectGate, check, globe, ball (3/4″–6″, CL600–900)
2020PT Optima Sumber EnergiOil and gasGate, check, globe (3/4″–12″, CL150–600)
2020PT Musthika MutiaraOil and gasBall (3″–8″, CL150/600)
2016–18PT Inti Karya Persada Tehnik (IKPT)PPGJ-CPP Area GundihBall (2″–12″, CL300; 4″–6″, CL600)

Full reference lists — global & Indonesia, updated May 2026 — are available upon request.

08 · Why KVI

What you get by working with the official entity.

01

Official local entity of the principal — not a parallel distributor; direct factory warranty and support.

02

Direct access to the manufacturer: competitive pricing, standard 6–8 week production lead time, production priority.

03

Complete international certifications: API Q1 & 6D, ISO 9001, CE-PED, DNV, SIL 3, EAC.

04

Specialized DNV-certified cryogenic / LNG valves, tested to −196 °C.

05

Vendor qualification support: Pertamina ABL / PAL, SKK Migas CIVD, iVendor, and EPC vendor lists.

06

Local Jakarta team — fast response, communication in Bahasa Indonesia & English.

07

After-sales and technical support delivered together with the principal (KVG).

09 · Contact

Tell us about your next project.

From a single valve to a full project package, our Jakarta team responds within one business day.

AddressEightyEight@Kasablanka Office Tower, 26th Floor Unit B, Jl. Casablanca Kav. 88, Menteng Dalam, Tebet, Jakarta Selatan 12870, Indonesia
Phone+62 816-618-996
Emailinfo@katavalvegroup.com
Websitewww.katavalvegroup.com
Salesiwan@katavalvegroup.com — Iwan Bhakti Setiawan, Senior Account Manager
Request a Quote Request the Catalogue

Legal Data

DeedNo. 1, 03-08-2026 — Notaris Kokoh Henry, S.H., M.Kn. (Jakarta)
SK KemenkumhamAHU-0062597.AH.01.01.TAHUN 2026 (04-08-2026)
NIB0408260090366 — Kementerian Investasi & Hilirisasi (KBLI 46599)
NPWP1000000010647613 — KPP Pratama Jakarta Tebet
ShareholdersPT Sentral Energi Mandiri (90%) · Donald Petrus Winata (10%)
